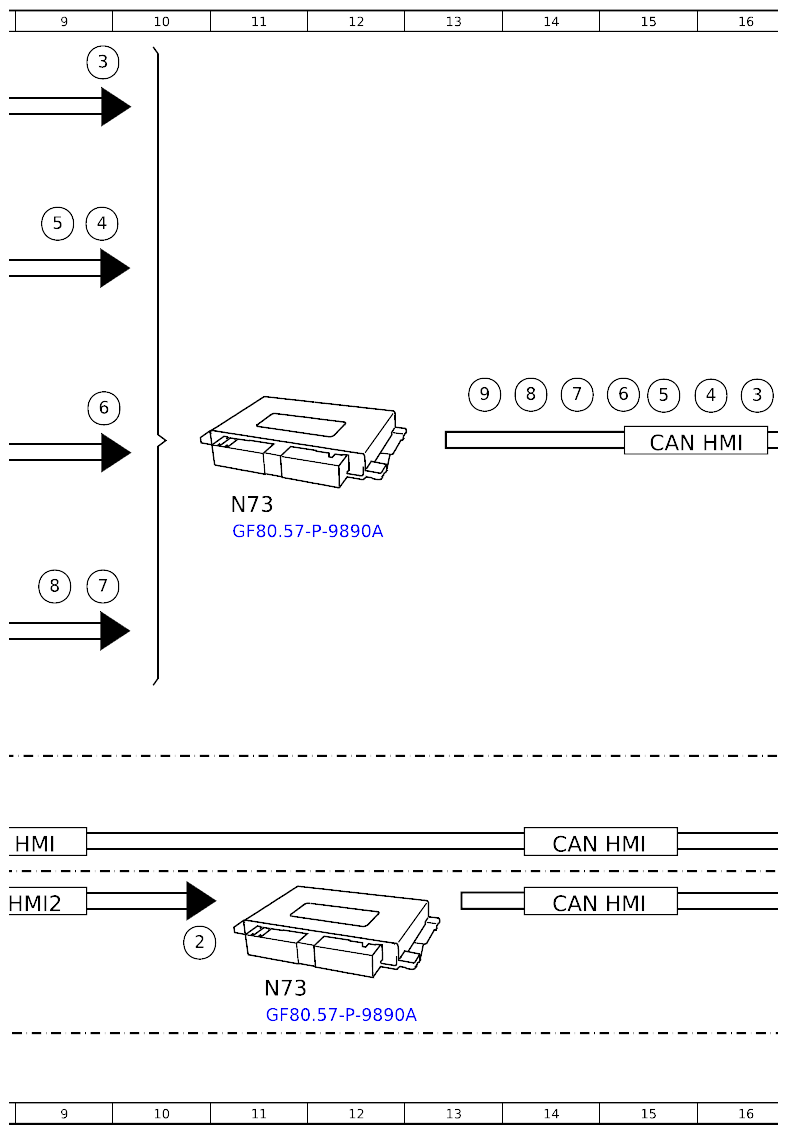

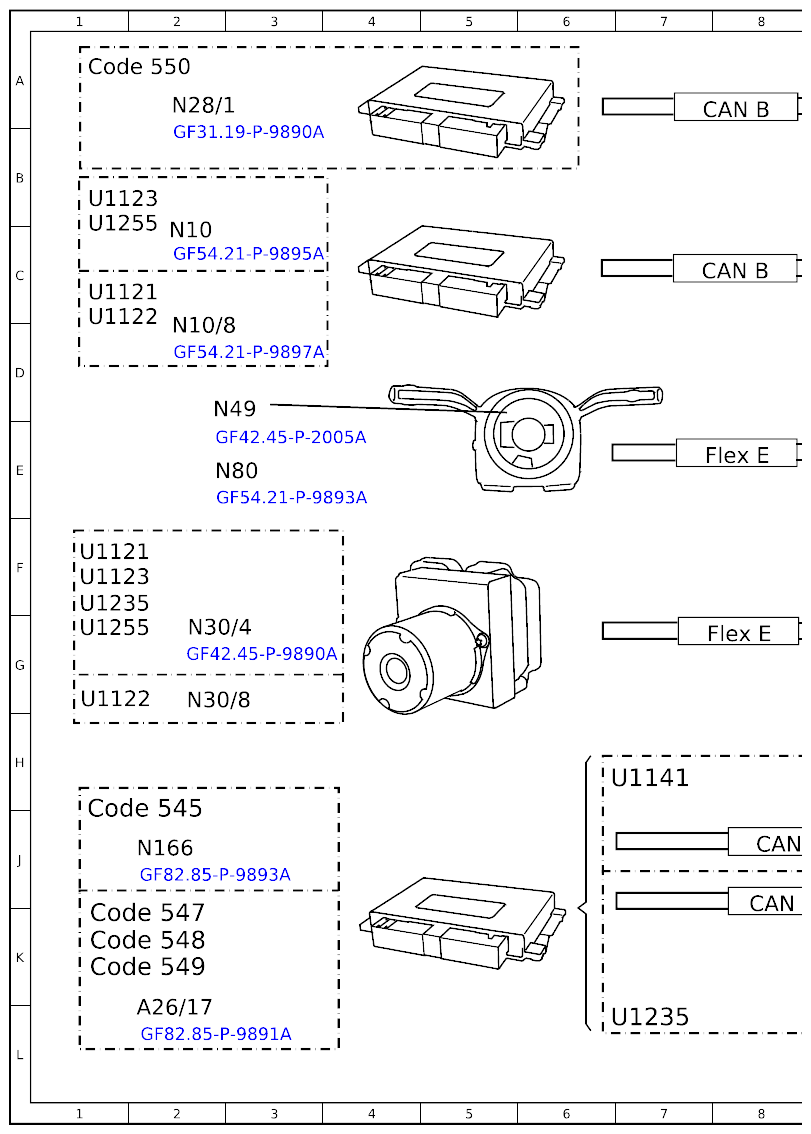

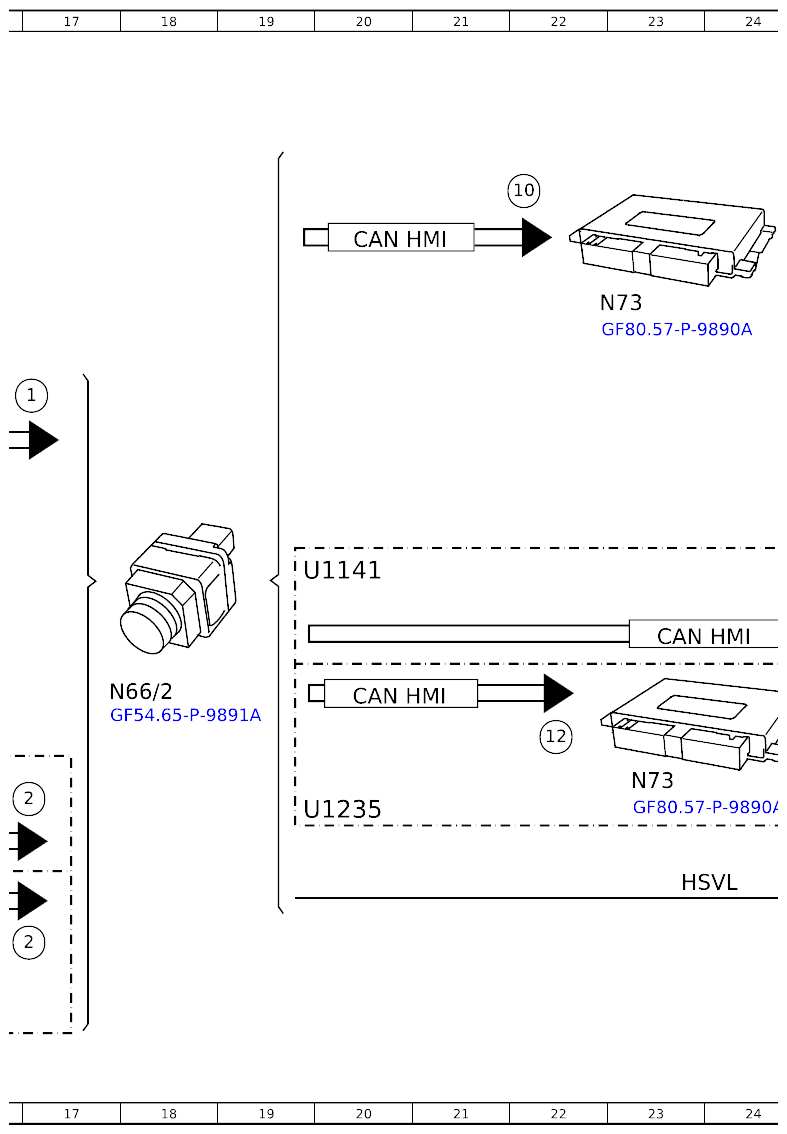

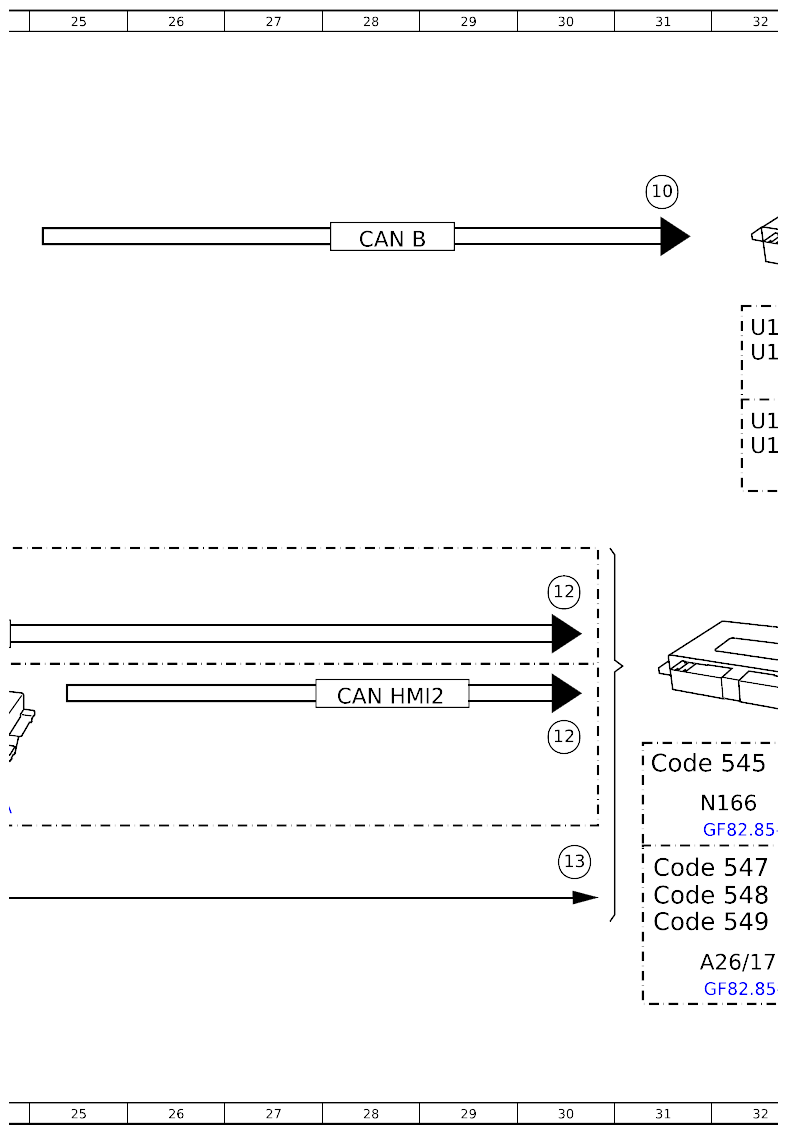

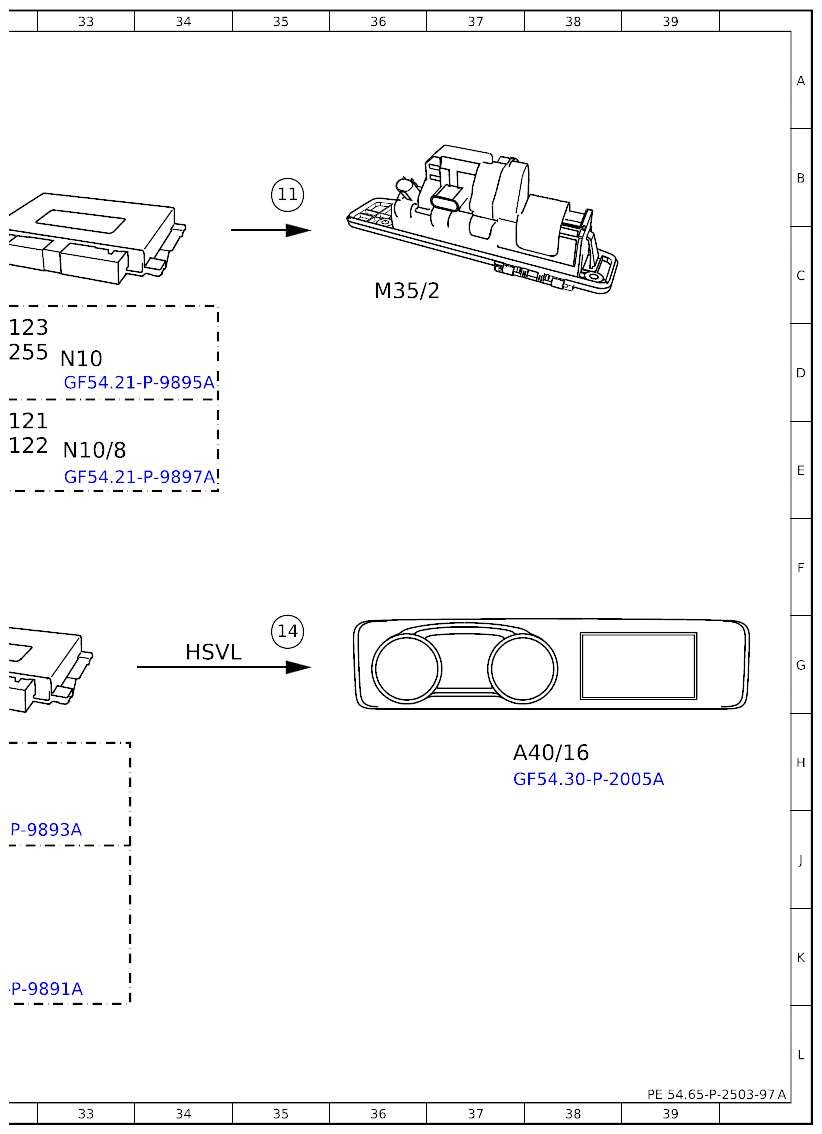

Reversing Camera Picture Display, Function Schematic - PE54.65-P-2503-97A
Model 118, 167, 177, 243, 293 with code 218 (Rear view camera) except code 235 (Active Parking Assist)
Model 213, 238, 257, 290 as of model year 2021 with code 218 (Rear view camera) except code 235 (Active Parking Assist)
Model 247 up to model year 2023 with code 218 (Rear view camera) except code 235 (Active Parking Assist)
| Code: | Designation: | Position: |
|---|---|---|
| A26/17 | Head unit | 2L |
| A26/17 | Head unit | 32K |
| A40/16 | Head unit/instrument cluster display cluster | 38H |
| Code 545 | Connect 5 (NTG6) | 1J |
| Code 545 | Connect 5 (NTG6) | 31H |
| Code 547 | Connect 20 Entry (NTG6) | 1K |
| Code 547 | Connect 20 Entry (NTG6) | 31J |
| Code 548 | Connect 20 MID (NTG6) | 1K |
| Code 548 | Connect 20 MID (NTG6) | 31J |
| Code 549 | Connect 20 HIGH (NTG6) | 1K |
| Code 549 | Connect 20 HIGH (NTG6) | 31K |
| Code 550 | Trailer hitch | 1A |
| HSVL | High-speed video link | 34G |
| HSVL | High-speed video link | 23J |
| M35/2 | Camera cover motor | 36C |
| N10 | Central control module | 2C |
| N10 | Central control module | 33D |
| N10/8 | Rear SAM control unit | 2D |
| N10/8 | Rear SAM control unit | 33E |
| N28/1 | Trailer recognition control unit | 2A |
| N30/4 | Electronic Stability Program (ESP®) control unit | 2G |
| N30/8 | Regenerative braking system control unit | 2G |
| N49 | Steering angle sensor | 3D |
| N66/2 | Backup camera | 18G |
| N73 | EIS [EZS] control unit | 11E |
| N73 | EIS [EZS] control unit | 23C |
| N73 | EIS [EZS] control unit | 11K |
| N73 | EIS [EZS] control unit | 23H |
| N80 | Steering column module | 3E |
| N166 | Head unit/instrument cluster control unit | 2J |
| N166 | Head unit/instrument cluster control unit | 32H |
| U1121 | Valid for model 167 | 1C |
| U1121 | Valid for model 167 | 1F |
| U1121 | Valid for model 167 | 32E |
| U1122 | Valid for model 293 | 1D |
| U1122 | Valid for model 293 | 1G |
| U1122 | Valid for model 293 | 32E |
| U1123 | Valid for model 118, 177, 247 | 1B |
| U1123 | Valid for model 118, 177, 247 | 1F |
| U1123 | Valid for model 118, 177, 247 | 32D |
| U1141 | Valid except model 213, 238, 257, 290 | 6H |
| U1141 | Valid except model 213, 238, 257, 290 | 19F |
| U1235 | Valid for model 213, 238, 257, 290 | 1F |
| U1235 | Valid for model 213, 238, 257, 290 | 6L |
| U1235 | Valid for model 213, 238, 257, 290 | 19J |
| U1255 | Valid for model 243 | 1C |
| U1255 | Valid for model 243 | 1G |
| U1255 | Valid for model 243 | 32D |
| CAN B | Interior CAN | 8A |
| CAN B | Interior CAN | 8C |
| CAN B | Interior CAN | 28C |
| CAN HMI | User interface CAN | 15E |
| CAN HMI | User interface CAN | 20C |
| CAN HMI | User interface CAN | 14J |
| CAN HMI | User interface CAN | 14K |
| CAN HMI | User interface CAN | 8J |
| CAN HMI | User interface CAN | 23G |
| CAN HMI | User interface CAN | 20G |
| CAN HMI2 | CAN 2 for user interface | 8K |
| CAN HMI2 | CAN 2 for user interface | 28G |
| Flex E | Chassis FlexRay | 8G |
| Flex E | Chassis FlexRay | 8E |
| 1 | Circuit 15, status | 17D |
| 2 | Backup camera function, status | 17H |
| 2 | Backup camera function, status | 17K |
| 2 | Backup camera function, status | 10K |
| 3 | Trailer recognition, status | 16D |
| 3 | Trailer recognition, status | 9A |
| 4 | Trunk lid/liftgate lock main catch switch, status | 16D |
| 4 | Trunk lid/liftgate lock main catch switch, status | 9C |
| 5 | Rear camera cover motor switch, status | 9C |
| 5 | Rear camera cover motor switch, status | 15D |
| 6 | Steering angle, signal | 9D |
| 6 | Steering angle, signal | 15D |
| 7 | Wheel speed, signal | 9F |
| 7 | Wheel speed, signal | 14D |
| 8 | Wheel rotation direction, signal | 9F |
| 8 | Wheel rotation direction, signal | 14D |
| 9 | Reverse gear, status | 13D |
| 10 | "Open" rear camera cover, request | 22B |
| 10 | "Open" rear camera cover, request | 31B |
| 11 | Rear camera cover motor, actuation | 35B |
| 12 | Reversing camera display, request | 30F |
| 12 | Reversing camera display, request | 22H |
| 12 | Reversing camera display, request | 30H |
| 13 | Camera image, signal | 30J |
| 14 | Image data, signal | 35G |
