Remove/Install Steering Wheel - AR46.10-P-0100MFA

Model 118, 177, 243, 247

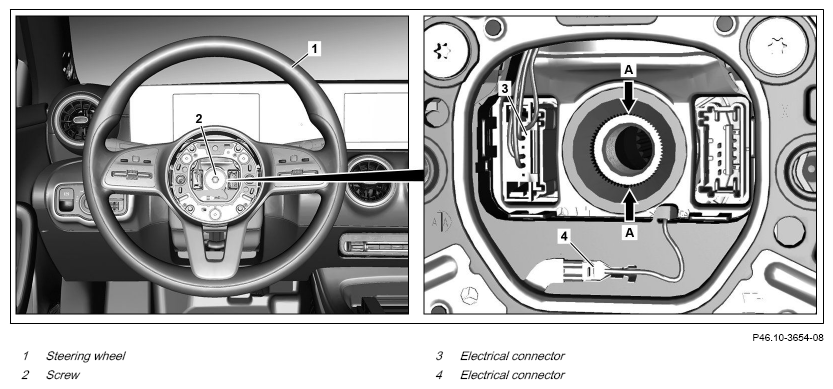

G16050181

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Turn steering wheel (1) into center position.	The front wheels must be in the straight-ahead position.
2	Remove driver airbag from steering wheel (1).	Model 118, 243 as of model year 2023 Model 177, 247 as of model year 2022	AR91.60-P-0663MFD
		Model 118, 243 up to model year 2022 Model 177, 247 up to model year 2021	AR91.60-P-0663MFA
3	Counterhold steering wheel (1) and unscrew screw (2).	replace the bolt (2).
		Screw/bolt, steering wheel to steering shaft	*BA46.10-P-1001-02F
4	Release and disconnect electrical connection (3).
5	Disconnect electrical connector (4).
6	Remove steering wheel (1).	Align recesses of the splines (arrows A) in steering wheel (1) with markings on the steering shaft.
7	Install in the reverse order.

STEERING WHEEL

Number	Designation		Model 117, 118	Model 177
BA46.10-P-1001-02F	Screw/bolt, steering wheel to steering shaft	Nm	80	80

STEERING WHEEL

Number	Designation		Model 243	Model 247
BA46.10-P-1001-02F	Screw/bolt, steering wheel to steering shaft	Nm	80	80
