Remove/Install Seat Belt Buckle For Front Seat - AR91.40-P-1510MFA

Model 118, 177, 243, 247

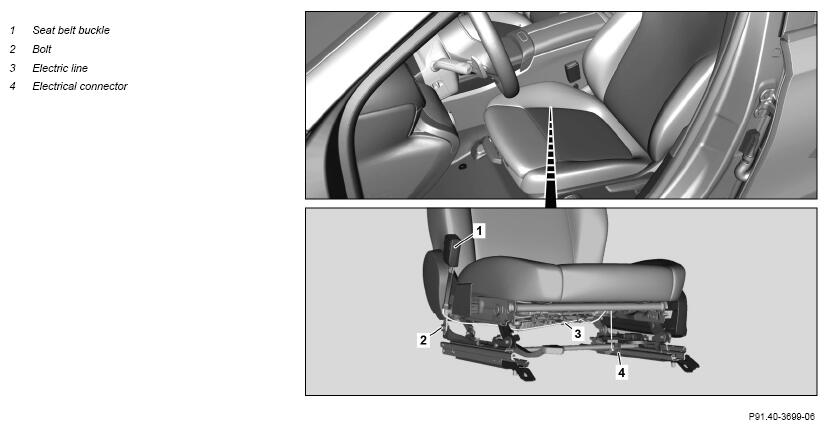

Shown on model 177

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove left or right front seat.		AR91.10-P-1000MFA
2	Remove fire extinguisher from holder.	Model 118, 177, 243, 247 with code 682 (Fire extinguisher)
3	Release and disconnect electrical connector (4).	Carefully unclip electrical connector (4). Danger of breakage.
4	Remove bolt (2).	Bolt, front seat belt buckle	*BA91.40-P-1004-01X
5	Unclip electric line (3) along seat frame.	Fix electric line (3) in place on seat frame base so that the front seat can be adjusted without restriction. Otherwise shearing off or crushing of the electric line (3) may occur.
6	Remove seat belt buckle (1).	Make sure seat belt buckle (1) is in correct installation position.
7	Install in the reverse order.

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 118	Model 177
BA91.40-P-1004-01X	Bolt, front seat belt buckle	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 243	Model 247
BA91.40-P-1004-01X	Bolt, front seat belt buckle	Nm	35	35
