Remove/Install Trunk Lid Cover - AR68.30-P-8151MFV
Model 118.3, 177.1/9
Shown on model 177.1 without code 494 (USA version)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove warning triangle from warning triangle bracket (4). | ||

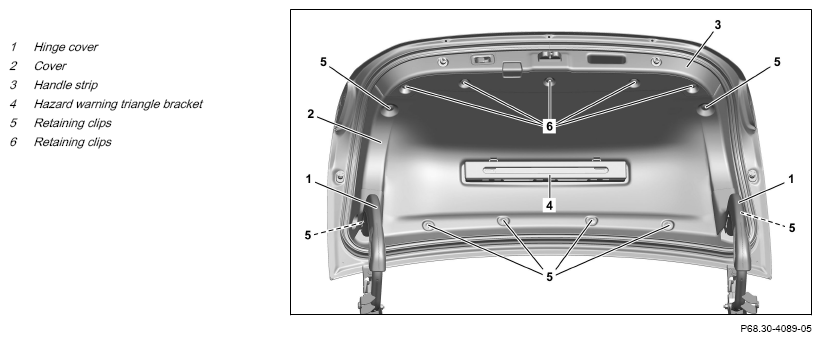

| 3 | Remove warning triangle bracket (4). | Fig 1 | |
| 4 | Unclip retaining clips (6). | Fig 1 | |
| 5 | Unclip handle strip (3); release and disconnect electrical connectors. | Do not crush or kink or subject electric lines to tension. This causes damage to the electric lines. |
Fig 2 |
| 6 | Remove handle strips (3). | ||
| 7 | Unclip retaining clips (5). | Fig 1 | |
| 8 | Remove hinge covers (1). | ||
| 9 | Release trim (2) of the trunk lid until the electrical connector of the inside trunk actuation is accessible. | Model 118.3, 177.1/9 with code 460 (Canada version) with code 494 (US version) |
|
| 10 | Release and disconnect electrical connector of the inside trunk actuation. | Model 118.3, 177.1/9 with code 460 (Canada version) with code 494 (US version) |
|
| 11 | Remove trim (2) of the trunk lid. | ||
| 12 | Remove inside trunk actuation. | Model 118.3, 177.1/9 with code 460 (Canada version) with code 494 (US version) When replacing cover (2). |
|
| 13 | Install in the reverse order. |
