Retrofit Exit And Warning Lamp With Logo Projector - AZ82.20-P-0020MFC

Model 118.3 (except 118.351/353/354), 118.6 (except 118.651/653/654)

with code U62 (Exterior light and sight package)

except code 586 (Logo projection via door illumination)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Switch off entrance and exit illumination at overhead control panel.
2	Remove left front door exit lamp (E17/72) and right front door exit lamp (E17/73).	Unclip left front door exit lamp (E17/72) and right front door exit lamp (E17/73) from below starting on left side. Otherwise, the electrical connector located on the left-hand side will be damaged. Long wedge	Fig 1
3	Remove black 2-pin coupling from left front door (E17/72) and right front door exit lamp (E17/73).	The left front door exit lamp (E17/72) and right front door exit lamp (E17/73) are no longer required.
	Install

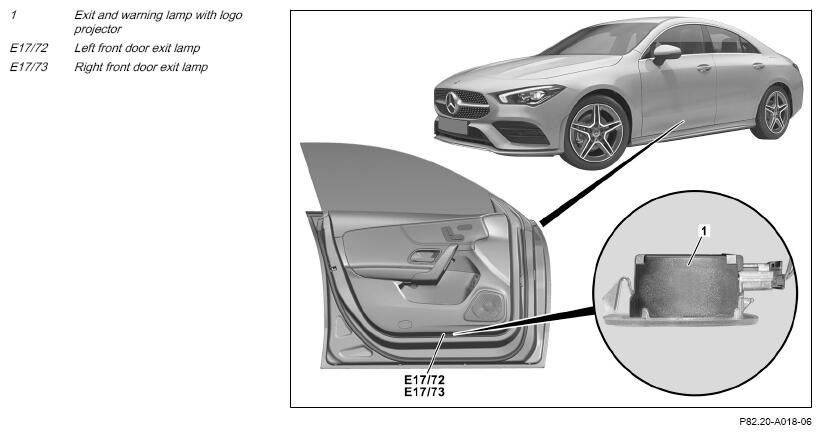

4	Install exit and warning lamp with logo projector (1) in front door on right and left.	If the entrance and exit illumination on the overhead control panel control unit is switched on, the exit and warning lamp with logo projector (1) lights up as soon as it is connected to the vehicle wiring harness. The heat sink fitted to the exit and warning lamp with logo projector (1) gets very hot.	AZ82.20-P-0020-04C
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
	Update Vehicle Documentation (VeDoc)
5	Attach note "Exit and warning lamp with logo projector retrofitted as per AZ82.20-P-0020MFC" under field organization texts to DG 72 and DG 82.
	Check
6	Perform function test.	The entry and exit illumination on overhead control panel control unit must be switched on.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
