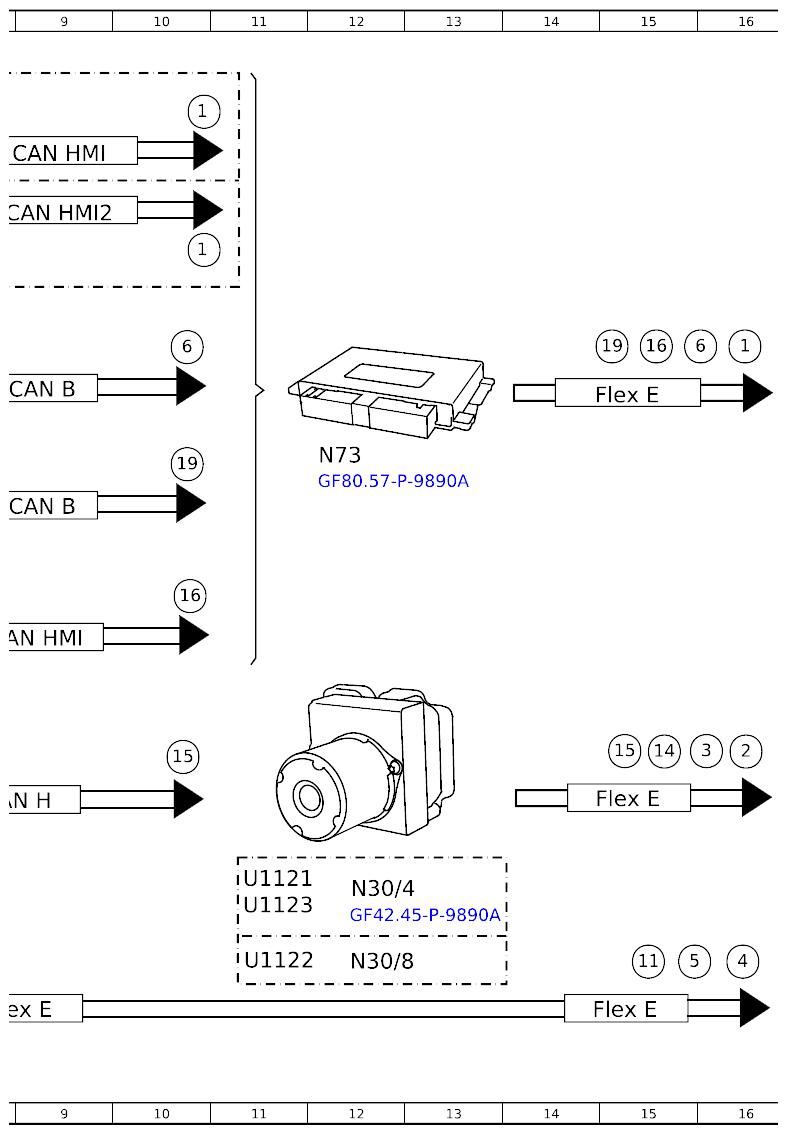

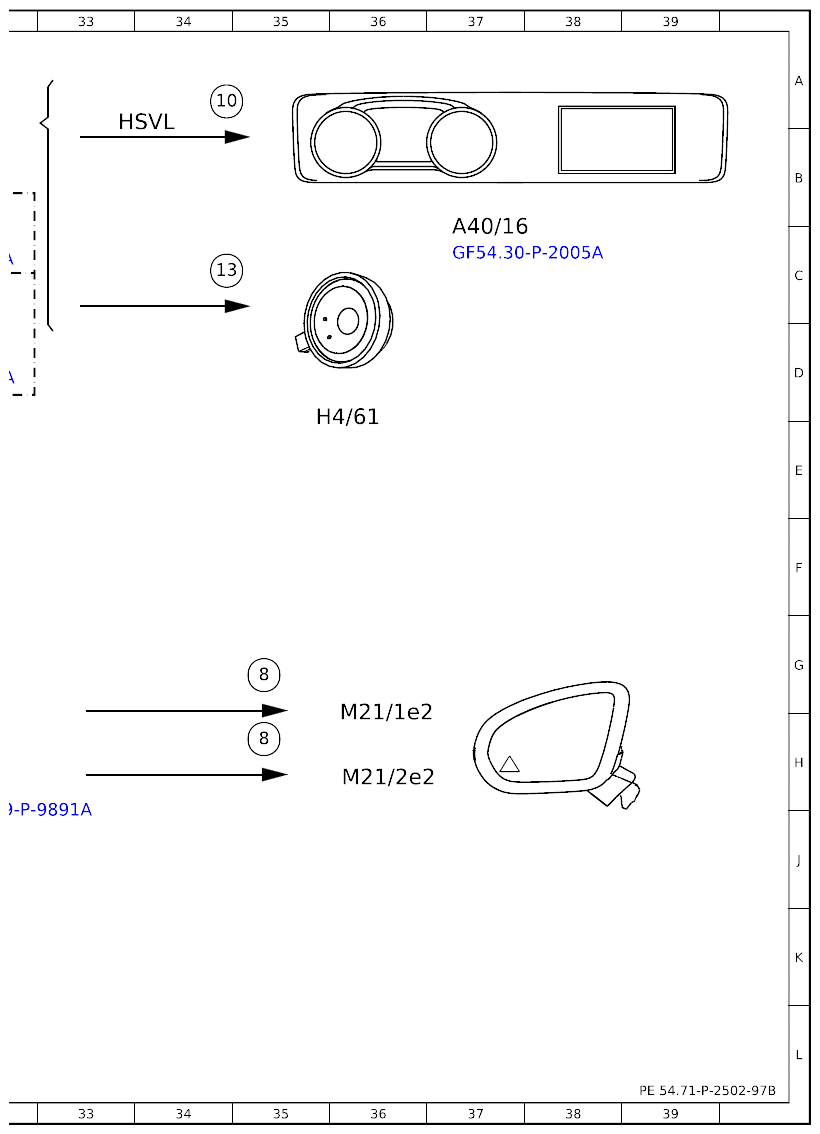

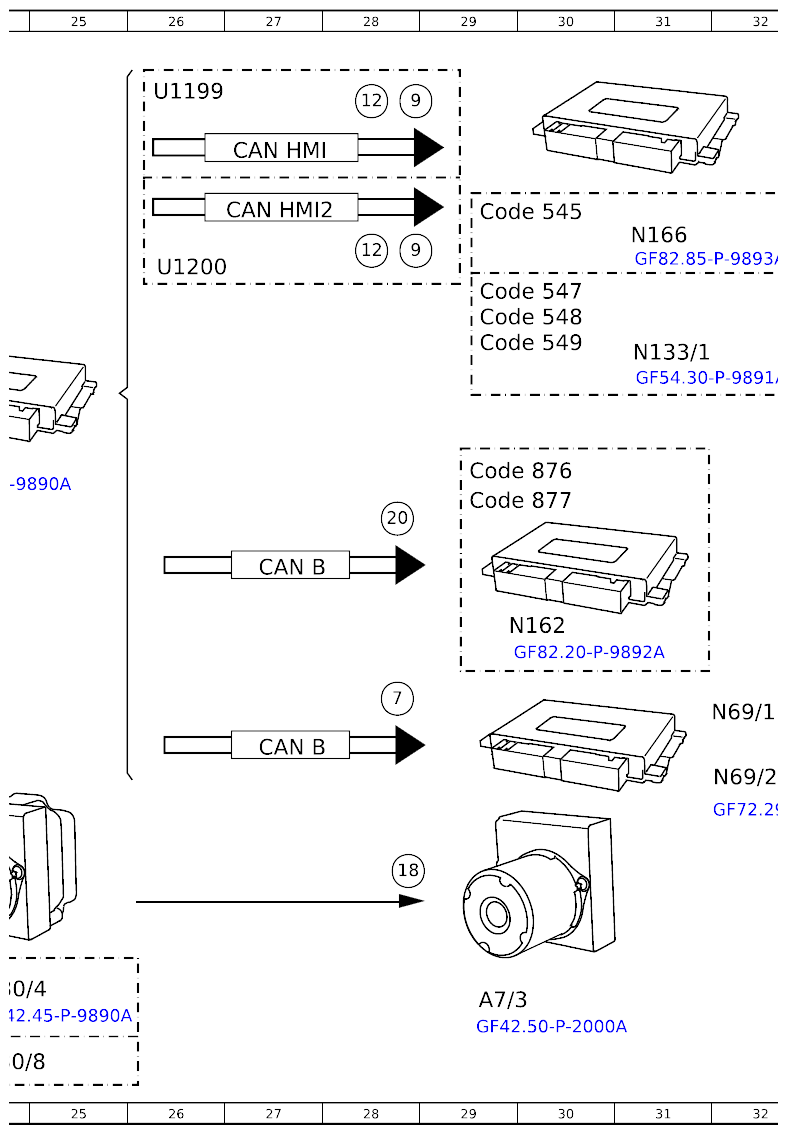

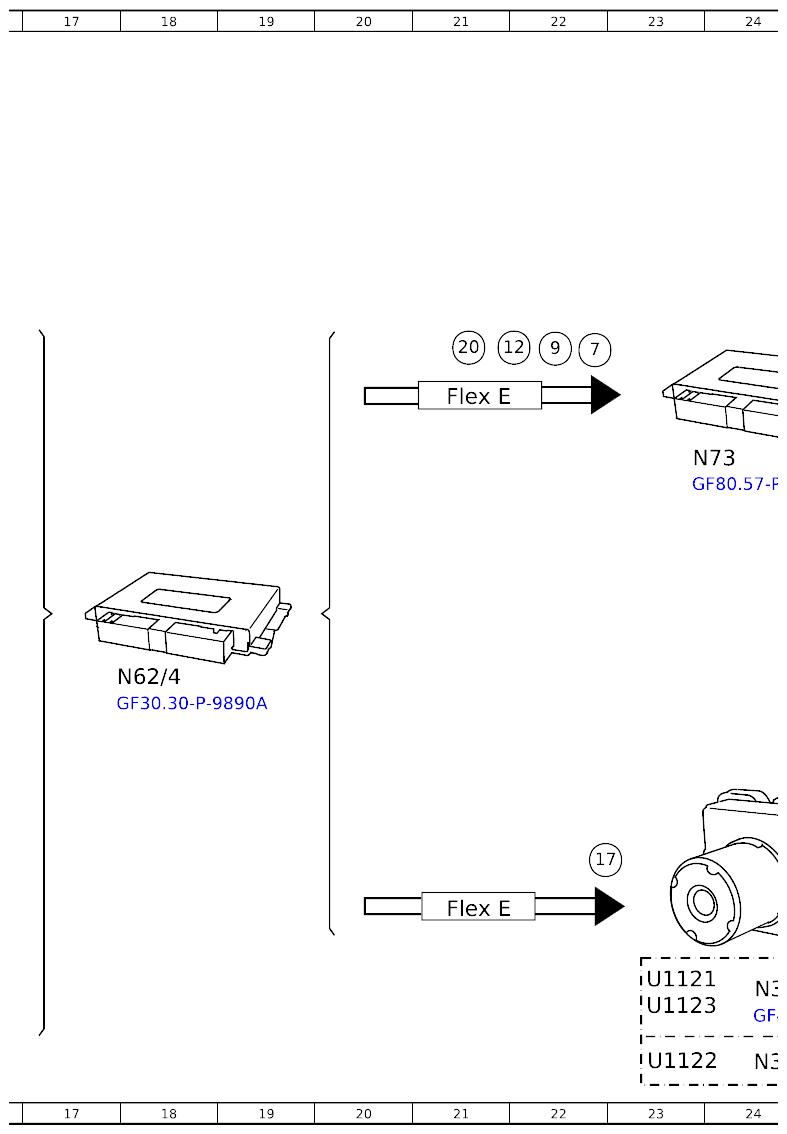

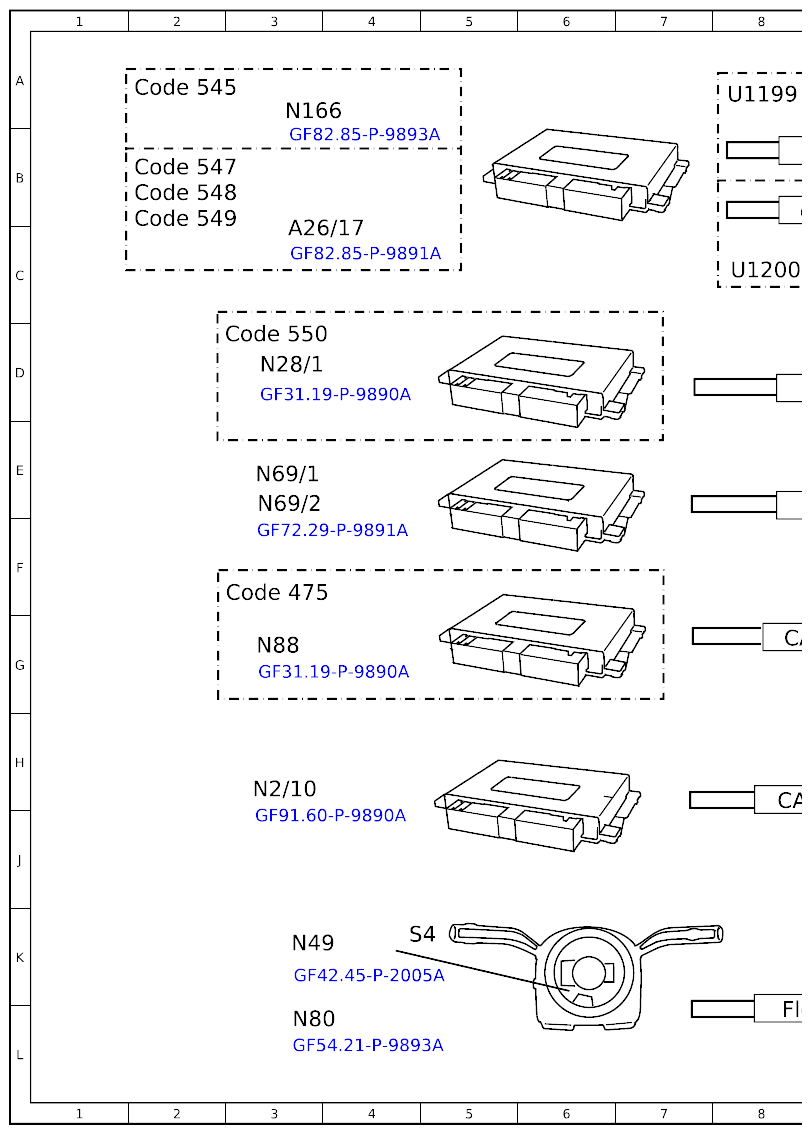

Monitor Blind Spot, Function Schematic - PE54.71-P-2502-97B
Model 118, 167, 177, 243, 247, 293 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
Model 213, 238, 257, 290 as of model year 2021 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
| Code: | Designation: | Position: |
|---|---|---|
| 20 | Exit warning, request | 28F |
| A7/3 | SBC hydraulic unit | 29L |
| A26/17 | Head unit | 3C |
| A40/16 | Head unit/instrument cluster display cluster | 37C |
| Code 475 | Tire pressure monitor | 3F |
| Code 545 | Connect 5 (NTG6) | 2A |
| Code 545 | Connect 5 (NTG6) | 29B |
| Code 547 | Connect 20 Entry (NTG6) | 2B |
| Code 547 | Connect 20 Entry (NTG6) | 29C |
| Code 548 | Connect 20 MID (NTG6) | 2B |
| Code 548 | Connect 20 MID (NTG6) | 29D |
| Code 549 | Connect 20 HIGH (NTG6) | 2B |
| Code 549 | Connect 20 HIGH (NTG6) | 29D |
| Code 550 | Trailer hitch | 2D |
| Code 876 | Interior lights package | 29E |
| Code 877 | Ambiance illumination | 29E |
| H4/61 | Instrument cluster speaker | 36E |
| HSVL | High-speed video link | 34B |
| M21/1e2 | Left Blind Spot Assist readiness and warning indicator | 36H |
| M21/2e2 | Right Blind Spot Assist readiness and warning indicator | 36H |
| N2/10 | Supplemental restraint system control unit | 3H |
| N28/1 | Trailer recognition control unit | 3D |
| N30/4 | Electronic Stability Program (ESP®) control unit | 12J |
| N30/4 | Electronic Stability Program (ESP®) control unit | 24K |
| N30/8 | Regenerative braking system control unit | 12K |
| N30/8 | Regenerative braking system control unit | 24L |
| N49 | Steering angle sensor | 3K |
| N62/4 | Driver assistance systems control unit | 18G |
| N69/1 | Driver door control unit | 3E |
| N69/1 | Driver door control unit | 32H |
| N69/2 | Front passenger door control unit | 3E |
| N69/2 | Front passenger door control unit | 32H |
| N73 | EIS [EZS] control unit | 12E |
| N73 | EIS [EZS] control unit | 24E |
| N80 | Steering column module | 3L |
| N88 | TPM [RDK] control unit | 3G |
| N133/1 | Instrument cluster control unit | 31D |
| N162 | Ambiance illumination control unit | 30G |
| N166 | Head unit/instrument cluster control unit | 3A |
| N166 | Head unit/instrument cluster control unit | 31C |
| S4 | Combination switch | 4K |
| U1121 | Valid for model 167 | 11J |
| U1121 | Valid for model 167 | 23K |
| U1122 | Valid for model 293 | 11K |
| U1122 | Valid for model 293 | 23L |
| U1123 | Valid for model 118, 177, 247 | 11K |
| U1123 | Valid for model 118, 177, 247 | 23L |
| U1199 | Valid for vehicles up to facelift | 8A |
| U1199 | Valid for vehicles up to facelift | 26A |
| U1200 | Valid for vehicles as of facelift | 8C |
| U1200 | Valid for vehicles as of facelift | 26C |
| CAN B | Interior CAN | 9D |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 27F |
| CAN B | Interior CAN | 27H |
| CAN H | Sensor CAN | 8H |
| CAN HMI | User interface CAN | 9G |
| CAN HMI | User interface CAN | 9B |
| CAN HMI | User interface CAN | 27B |
| CAN HMI2 | CAN 2 for user interface | 9B |
| CAN HMI2 | CAN 2 for user interface | 27B |
| Flex E | Chassis FlexRay | 15H |
| Flex E | Chassis FlexRay | 15L |
| Flex E | Chassis FlexRay | 15D |
| Flex E | Chassis FlexRay | 21D |
| Flex E | Chassis FlexRay | 21K |
| Flex E | Chassis FlexRay | 8L |
| 1 | Blind spot assist, status | 16D |
| 1 | Blind spot assist, status | 10A |
| 1 | Blind spot assist, status | 10C |
| 2 | Wheel speed, signal | 16H |
| 3 | Wheel rotation direction, signal | 16H |
| 4 | Steering angle, signal | 16K |
| 5 | Steering wheel velocity, signal | 15K |
| 6 | Trailer recognition, status | 10D |
| 6 | Trailer recognition, status | 16D |
| 7 | Blind Spot Assist warning indicator, request | 28G |
| 7 | Blind Spot Assist warning indicator, request | 22D |
| 8 | Blind Spot Assist warning indicator, actuation | 35G |
| 8 | Blind Spot Assist warning indicator, actuation | 35H |
| 9 | Blind Spot Assist warning, request | 22D |
| 9 | Blind Spot Assist warning, request | 28A |
| 9 | Blind Spot Assist warning, request | 28C |
| 10 | Image data, signal | 34A |
| 11 | Combination switch, status | 15K |
| 12 | Warning tone, request | 21D |
| 12 | Warning tone, request | 28A |
| 12 | Warning tone, request | 28C |
| 13 | Speaker, actuation | 34C |
| 14 | ESP®, status | 15H |
| 15 | Speed, turn rate and lateral acceleration, signal | 10H |
| 15 | Speed, turn rate and lateral acceleration, signal | 15H |
| 16 | Tire pressure monitor, message | 15D |
| 16 | Tire pressure monitor, message | 10F |
| 17 | Wheel-specific service brake braking torque, request | 22J |
| 18 | Wheel-specific service brake braking torque, actuation | 28J |
| 19 | Door rotary tumbler switch, status | 10E |
| 19 | Door rotary tumbler switch, status | 15D |
| 20 | Exit warning, request | 21D |
