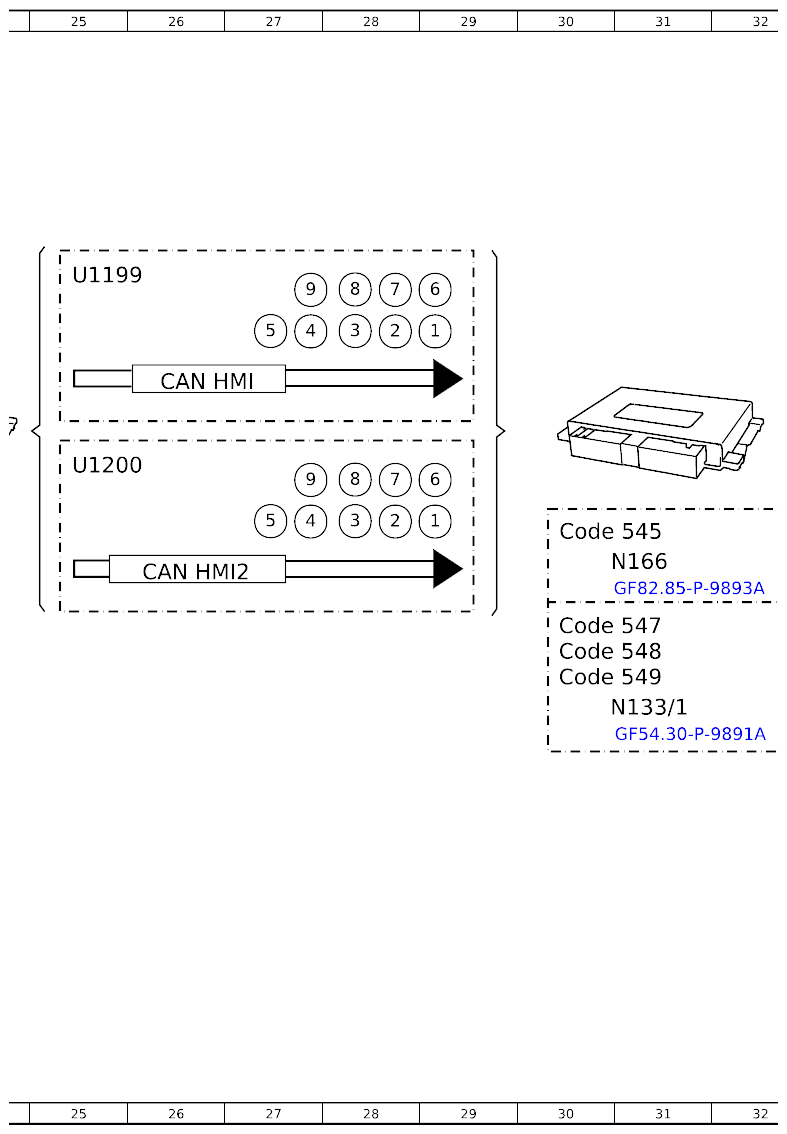

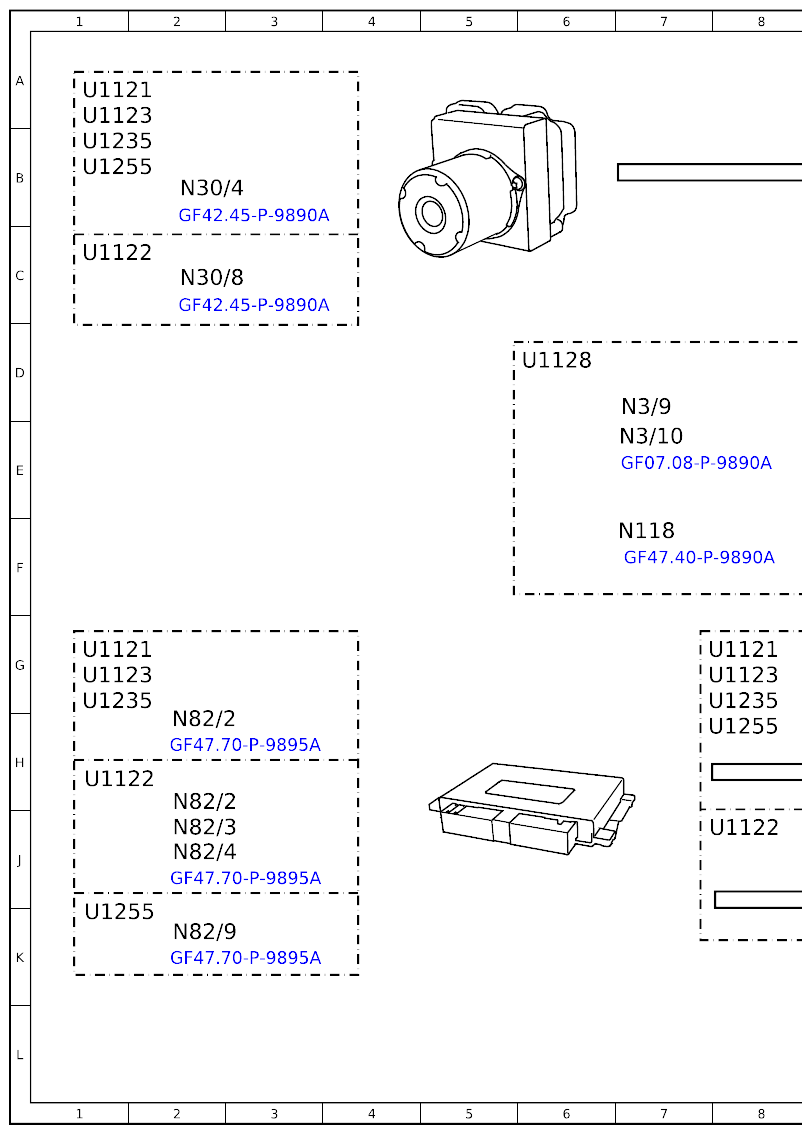

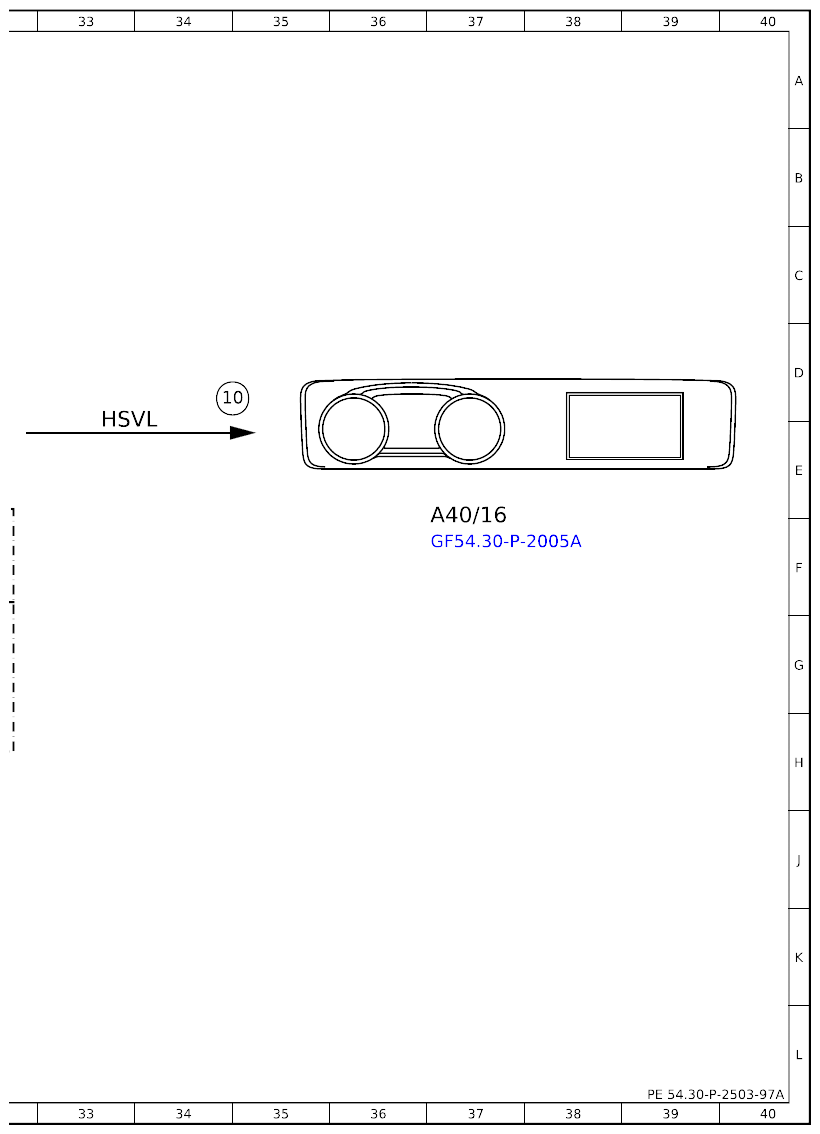

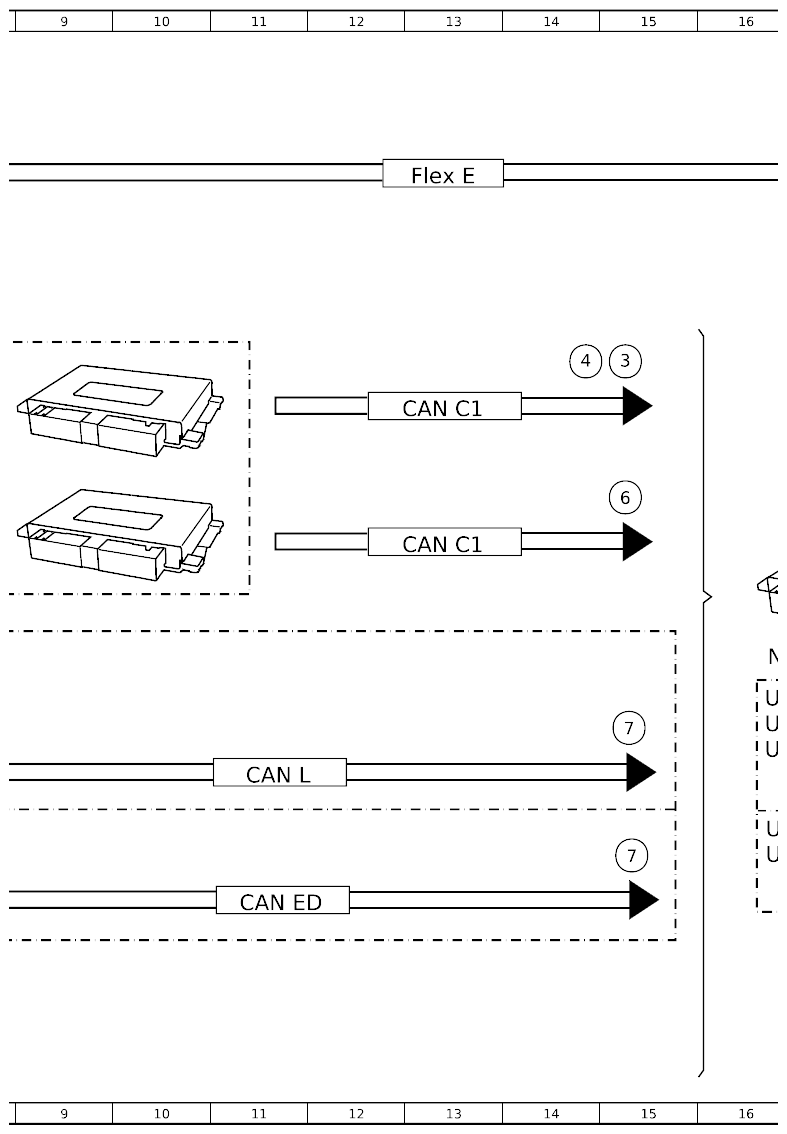

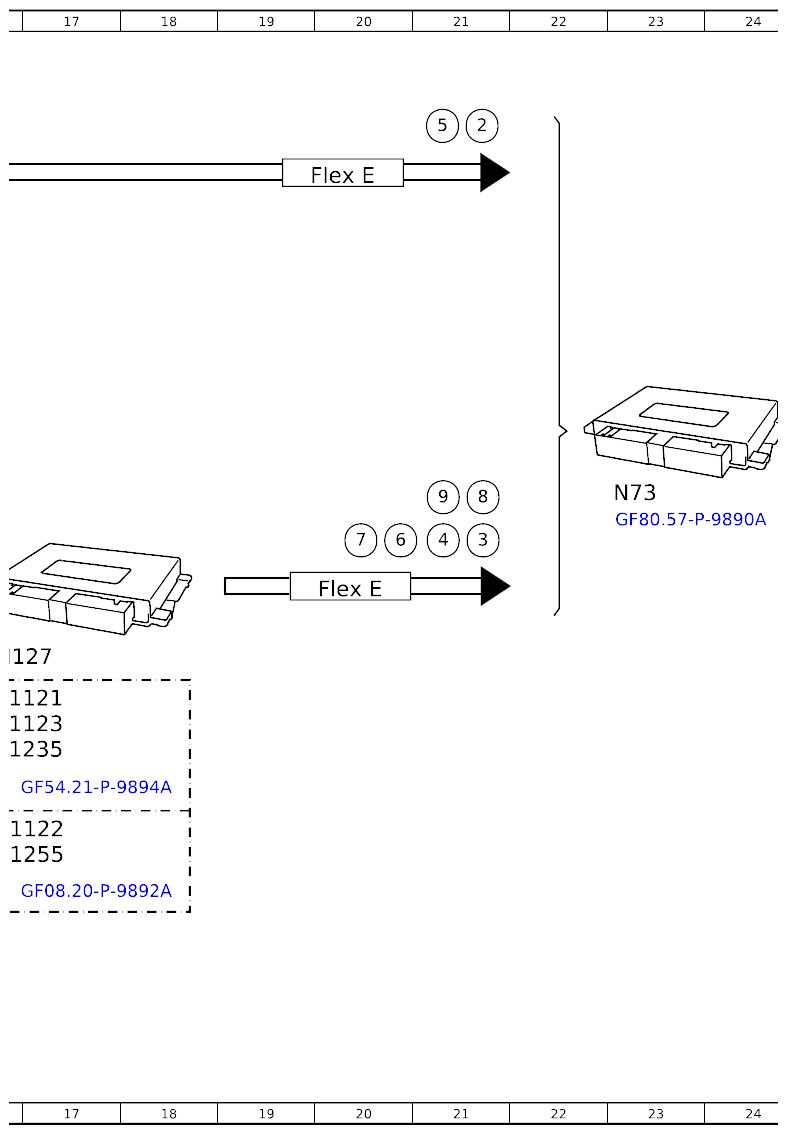

Function Schematic For Displaying Operating Statuses In Instrument Cluster Display - PE54.30-P-2503-97A
Model 118, 167, 177, 247, 293
Model 213, 238, 257, 290 as of model year 2021
Model 243
| Code: | Designation: | Position: |
|---|---|---|
| A40/16 | Head unit/instrument cluster display cluster | 37F |
| Code 545 | Connect 5 (NTG6) | 30F |
| Code 547 | Connect 20 Entry (NTG6) | 30G |
| Code 548 | Connect 20 MID (NTG6) | 30G |
| Code 549 | Connect 20 HIGH (NTG6) | 30G |
| HSVL | High-speed video link | 33E |
| N3/9 | CDI control unit | 7D |
| N3/10 | Engine management control unit | 7E |
| N30/4 | Electronic Stability Program (ESP®) control unit | 2B |
| N30/8 | Regenerative braking system control unit | 2C |
| N73 | EIS [EZS] control unit | 23E |
| N82/2 | Battery management system control unit | 2H |
| N82/2 | Battery management system control unit | 2H |
| N82/3 | Battery management system control unit | 2J |
| N82/4 | Battery management system control unit | 2J |
| N82/9 | Battery management system control unit | 2K |
| N118 | Fuel pump control unit | 7F |
| N127 | Drivetrain control unit | 16G |
| N133/1 | Instrument cluster control unit | 31H |
| N166 | Head unit/instrument cluster control unit | 31F |
| U1121 | Valid for model 167 | 1A |
| U1121 | Valid for model 167 | 1G |
| U1121 | Valid for model 167 | 7G |
| U1121 | Valid for model 167 | 16G |
| U1122 | Valid for model 293 | 1H |
| U1122 | Valid for model 293 | 1C |
| U1122 | Valid for model 293 | 7J |
| U1122 | Valid for model 293 | 16J |
| U1123 | Valid for model 118, 177, 247 | 1A |
| U1123 | Valid for model 118, 177, 247 | 1G |
| U1123 | Valid for model 118, 177, 247 | 7G |
| U1123 | Valid for model 118, 177, 247 | 16H |
| U1128 | Valid for combustion engine | 6D |
| U1199 | Valid for vehicles up to facelift | 25C |
| U1200 | Valid for vehicles as of facelift | 25E |
| U1235 | Valid for model 213, 238, 257, 290 | 1B |
| U1235 | Valid for model 213, 238, 257, 290 | 1G |
| U1235 | Valid for model 213, 238, 257, 290 | 7G |
| U1235 | Valid for model 213, 238, 257, 290 | 16H |
| U1255 | Valid for model 243 | 1K |
| U1255 | Valid for model 243 | 1B |
| U1255 | Valid for model 243 | 7H |
| U1255 | Valid for model 243 | 16J |
| CAN C1 | CAN 1 for drive | 13D |
| CAN C1 | CAN 1 for drive | 13F |
| CAN ED | Electric drive CAN | 11K |
| CAN HMI | User interface CAN | 26D |
| CAN HMI2 | CAN 2 for user interface | 26F |
| CAN L | CAN for HYBRID | 11H |
| Flex E | Chassis FlexRay | 20F |
| Flex E | Chassis FlexRay | 20B |
| Flex E | Chassis FlexRay | 13B |
| 1 | Circuit 15, status | 29D |
| 1 | Circuit 15, status | 29F |
| 2 | Vehicle speed, signal | 21B |
| 2 | Vehicle speed, signal | 28D |
| 2 | Vehicle speed, signal | 28F |
| 3 | Engine speed, signal | 15D |
| 3 | Engine speed, signal | 21F |
| 3 | Engine speed, signal | 28D |
| 3 | Engine speed, signal | 28F |
| 4 | Coolant temperature, signal | 14D |
| 4 | Coolant temperature, signal | 21F |
| 4 | Coolant temperature, signal | 27D |
| 4 | Coolant temperature, signal | 27F |
| 5 | Wheel speed, signal | 21B |
| 5 | Wheel speed, signal | 27D |
| 5 | Wheel speed, signal | 27F |
| 6 | Fuel fill level, signal | 15E |
| 6 | Fuel fill level, signal | 29C |
| 6 | Fuel fill level, signal | 20F |
| 6 | Fuel fill level, signal | 29E |
| 7 | High-voltage battery, status | 15H |
| 7 | High-voltage battery, status | 28C |
| 7 | High-voltage battery, status | 20F |
| 7 | High-voltage battery, status | 15J |
| 7 | High-voltage battery, status | 28E |
| 8 | Transmission position, signal | 28C |
| 8 | Transmission position, signal | 21E |
| 8 | Transmission position, signal | 28E |
| 9 | Transmission mode, signal | 27C |
| 9 | Transmission mode, signal | 21E |
| 9 | Transmission mode, signal | 27E |
| 10 | Image data, signal | 34D |
