Remove/Install Touchpad Control Unit - AR54.21-P-0503MFA
Model 118, 177, 247
with code 446 (Touchpad only)
except code 411 (6-speed manual transmission)
Model 243
with code 446 (Touchpad only)

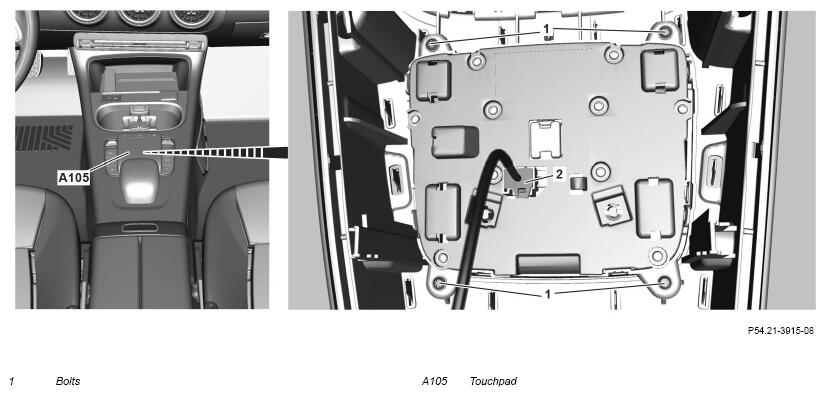

Fig 1: Touchpad Control Unit Components Location - Model 118 With Code 446 Except Code 411 (Shown On Model 177)
Shown on model 177
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove cover from center console. | AR68.20-P-2350MFA | |
| 3 | Remove bolts (1). | ||
| 4 | Remove touchpad (A105). | ||
| 5 | Install in the reverse order. | ||
| 6 | Perform commissioning of touchpad (A105). | When replacing touchpad (A105). | |
| AD00.00-P-2000-06MFA |
