Remove/Install Short And Long-Range Radar Sensor - AR54.21-P-0702MFA
Model 118, 177, 243, 247.0/6
with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
Shown on model 177.0 with code 233
(Autonomous Intelligent Cruise Control Plus
(DISTRONIC PLUS))

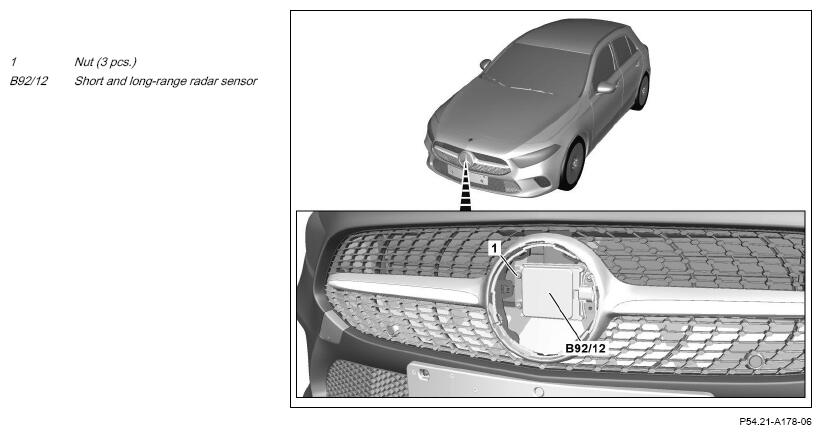

Fig 1: Short And Long-Range Radar Sensor Components Location - Model 118 With Code 233 (Shown In Model 177)
| Notice | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove Mercedes star. | Model 118, 177, 247.0/6 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) | AR88.40-P-4053MFA |
| Model 243 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) | AR88.40-P-4053EQA | ||
| 2 | Remove nuts (1). | ||
| 3 | Remove short and long range radar sensor (B92/12) and release and disconnect electrical connector. | ||
| 4 | Install in the reverse order. | ||
| 5.1 | Commission the short- and long-range radar sensor (B92/12). | Model 118, 177, 243, 247.0/6 as of model year 2022 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) |
|
| AD00.00-P-2000-06MFA | |||
| 5.2 | Commission the short- and long-range radar sensor (B92/12). | Model 118, 177, 243, 247.0/6 up to model year 2021 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) When short and long range radar sensor (B92/12) is being replaced. |
|
| AD00.00-P-2000-06MFA | |||
| 5.3 | Calibrate the short- and long-range radar sensor (B92/12) using the diagnostic system. | Model 118, 177, 243, 247.0/6 up to model year 2021 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) |
|
| AD00.00-P-2000-06MFA |
