Remove/Install Pyrofuse Electrical Connector - AR54.15-P-1100MFA
Model 118, 177, 247
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||

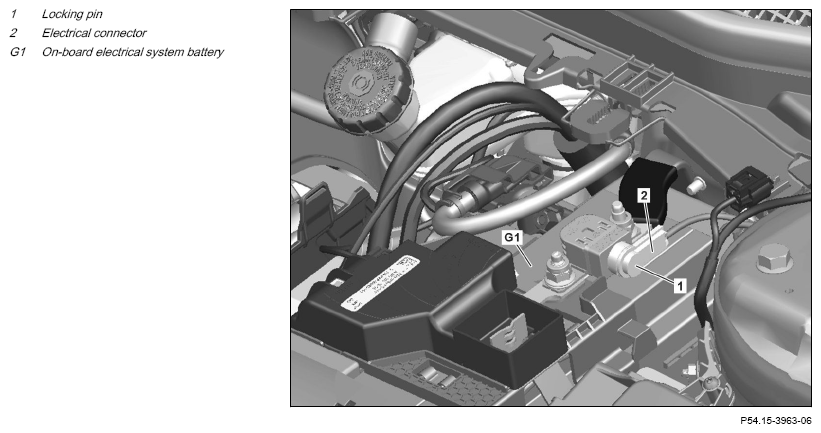

| 1 | Clamp off ground line of on-board electrical system battery (G1). | AR54.10-P-0003MFA | |
| 2 | Unlock locking pin (1) and detach electrical plug (2) from positive terminal of on-board electrical system battery (G1). | ||
| 3 | Expose electrical wiring harness of electrical plug (2). | ||

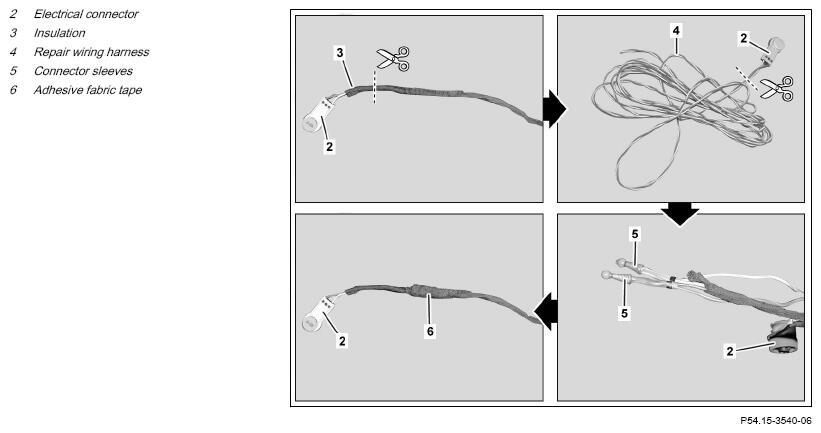

| 4 | Remove insulation (3) from electrical wiring harness of electrical plug (2) up to beyond damaged area and disconnect electrical wiring harness. | ||
| Install | |||
| Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering. | Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area. | AS00.19-Z-0002-01A | |
| 5 | Cut repair wiring harness (4) to match old part and connect to electrical wiring harness of electrical plug (2) using end sleeves (5). | ||
| Topical note | Notes on soldering | AH00.19-P-1000-10A | |
| 6 | Wrap fabric tape around repair area (6). | ||
| 7 | Route electrical wiring harness of electrical plug (2) to on-board electrical system battery (G1) and fix in place. | Otherwise damage may occur. |
|
| 8 | Connect electrical plug (2) to positive pole of on-board electrical system battery (G1) and lock locking pin (1). | ||
| 9 | Clip on ground line of the on-board electrical system battery (G1). | AR54.10-P-0003MFA |
