Remove/Install Pre-Fuse Box At On-Board Electrical System Battery - AR54.15-P-1353MFA
Model 118, 177, 247
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove air filter housing. | Model 118, 177, 247 with engine 608 | |
| AR09.10-P-1150MFE | |||
| 2 | Remove voltage dip limiter (R62). | Model 118, 177, 247 except code B01 (48V technology) except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
|
| AR54.10-P-0014MFA | |||

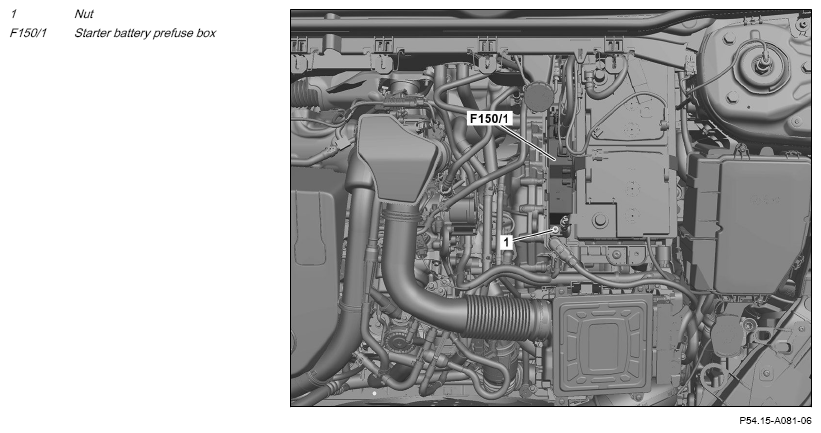

| 3 | Remove nut (1) and place starter battery pre-fuse box (F150/1) to one side with attached lines. | *BA54.15-P-1005-01M | |
| 4 | Release and open cover of starter battery pre-fuse box (F150/1). | ||
| 5 | Release and disconnect electrical connector (2). | ||
| 6 | Remove nuts (3, 4) from starter battery pre-fuse box (F150/1). | *BA54.15-P-1006-01M | |
| 7 | Remove electric lines from starter battery pre-fuse box (F150/1). | ||
| 8 | Remove starter battery pre-fuse box (F150/1). | ||
| 9 | Install in the reverse order. |
FUSE AND RELAY BOX
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA54.15-P-1005-01M | Nut, on-board electrical system battery pre-fuse box to battery frame | M5 | Nm | 4 | 4 |
FUSE AND RELAY BOX
| Number | Designation | Model 247 | ||
|---|---|---|---|---|
| BA54.15-P-1005-01M | Nut, on-board electrical system battery pre-fuse box to battery frame | M5 | Nm | 4 |
FUSE AND RELAY BOX
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA54.15-P-1006-01M | Nut, positive line to on-board electrical system battery pre-fuse box | M6 | Nm | 8 | 8 |
| M8 | Nm | 16 | 16 | ||
FUSE AND RELAY BOX
| Number | Designation | Model 247 | ||
|---|---|---|---|---|
| BA54.15-P-1006-01M | Nut, positive line to on-board electrical system battery pre-fuse box | M6 | Nm | 8 |
| M8 | Nm | 16 | ||
