Remove/Install Instrument Cluster Display Module - AR54.30-P-6023MFA
Model 118, 177, 243, 247
Shown on model 177
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Commission display cluster for head unit/instrument cluster (A40/16). | When replacing head unit/instrument cluster display cluster (A40/16). | |
| AD00.00-P-2000-06MFA | |||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

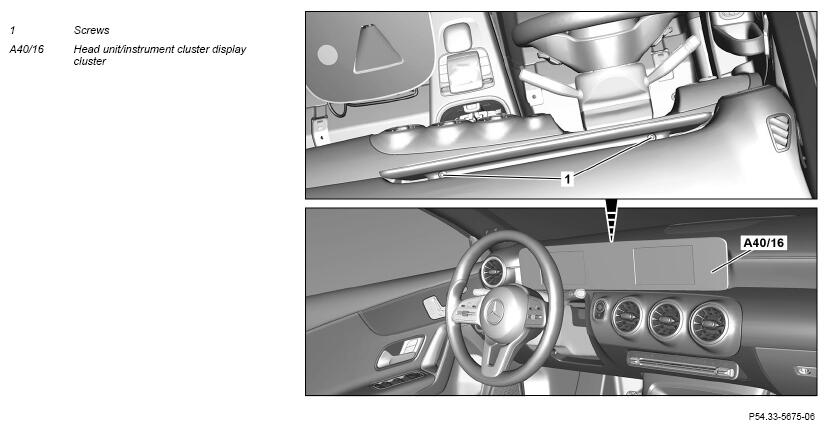

| 3 | Remove screws (1). | ||
| 4 | Pull head unit/instrument cluster display cluster (A40/16) upward and tilt toward steering wheel until electrical connectors are accessible. | Do not crush or kink or subject electric lines to tension. This will result in damage to the lines which may impair their functional capability. |
|
| 5 | Release and disconnect electrical connectors. | ||

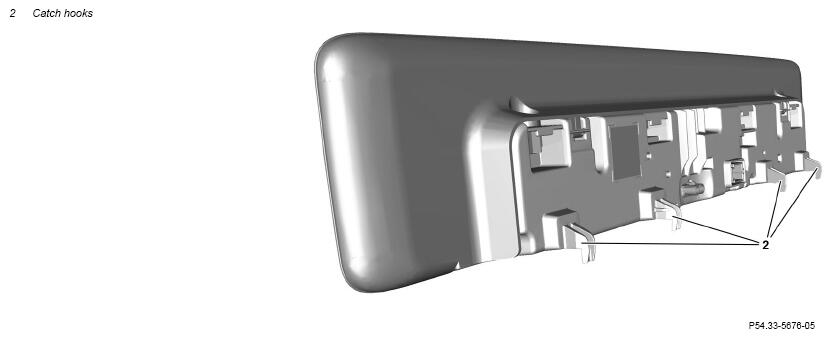

| 6 | Tilt head unit/instrument cluster display cluster (A40/16) until the catch hooks (2) can be extended out of the guides. | ||
| 7 | Remove head unit/instrument cluster display cluster (A40/16). | ||
| 8 | Install in the reverse order |
