Remove/Install Front Pre-Fuse Box - AR54.15-P-1330MFA
Model 118, 177, 243, 247
Shown on model 177
Shown on model 177
Shown on model 177
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

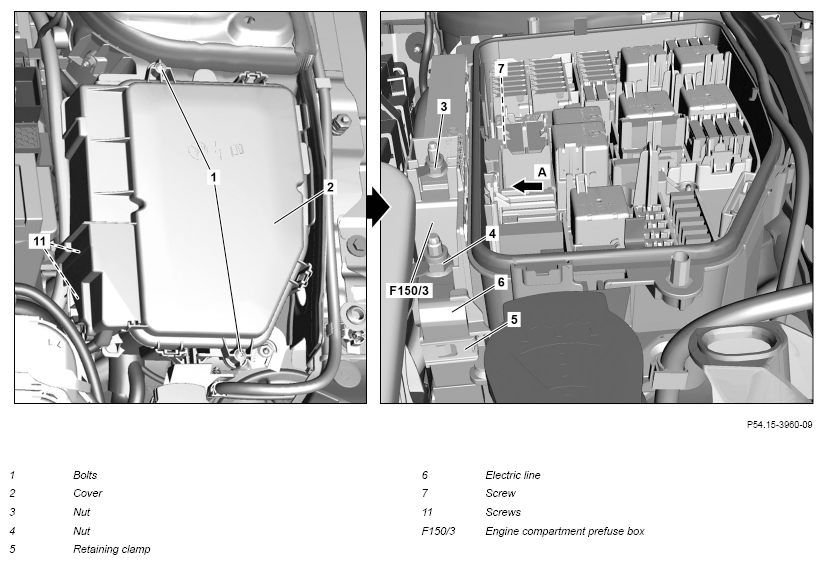

| 1 | Detach ground line of on-board electrical system battery. | AR54.10-P-0003MFA | |
| 2 | Remove bolts (1). | ||
| 3 | Unclip cable of engine hood catch from cover (2). | ||
| 4 | Unclip cover (2) at catch hooks and remove. | ||
| 5 | Remove nut (3) and position electric line outside working area. | Nut, positive line to pre-fuse box |
*BA54.15-P-1001-01M |
Nut, positive line to engine compartment pre-fuse box |
*BA54.15-P-1006-02B | ||
| 6 | Remove nut (4). | Nut, positive line to pre-fuse box |
*BA54.15-P-1001-01M |
Nut, positive line to engine compartment pre-fuse box |
*BA54.15-P-1006-02B | ||
| 7 | Remove retaining clamp (5) with electric line (6). | Do not kink or stretch the electric lines. Otherwise damage will occur. |
|
| 8 | Remove screws (11). | ||

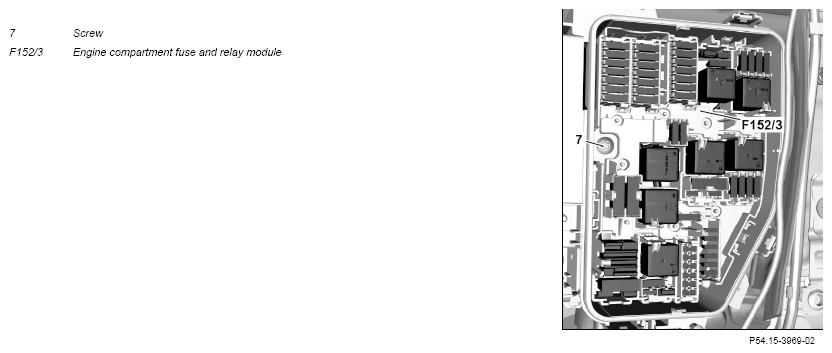

| 9 | Remove screw (7) from engine compartment fuse and relay module (F152/3). | ||
| 10 | Pull engine compartment pre-fuse box (F150/3) out of guides, then lift and swivel far enough until nuts (8) are accessible. | Do not kink or stretch the electric lines. Otherwise damage will occur. |
|

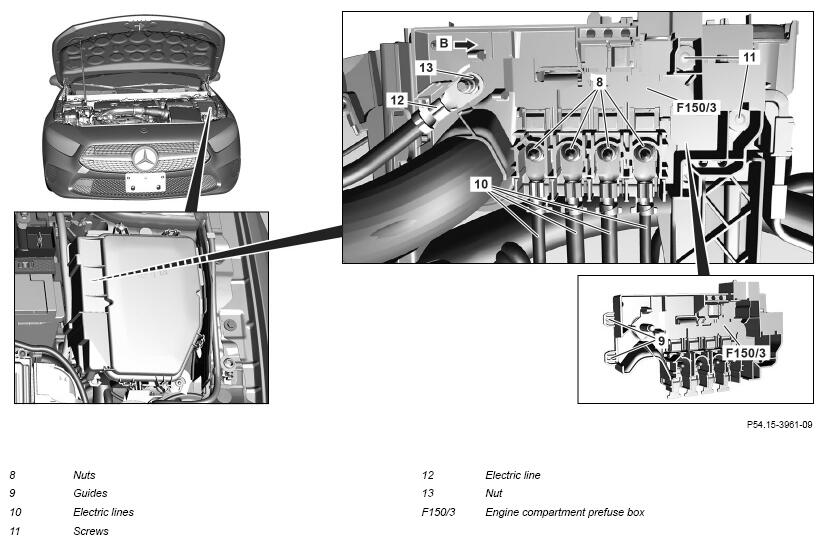

| 11 | Disconnect cable tie from electric line (12). | ||
| 12 | Remove nut (13). | Nut, positive line to pre-fuse box |
*BA54.15-P-1001-01M |
Nut, positive line to engine compartment pre-fuse box |
*BA54.15-P-1006-02B | ||
| 13 | Remove electric line (12) from engine compartment pre-fuse box (F150/3) and position outside working area. | ||
| 14 | Disconnect cable ties from electric lines (10). | ||
| 15 | Remove nuts (8). | Nut, positive line to pre-fuse box |
*BA54.15-P-1001-01M |
Nut, positive line to engine compartment pre-fuse box |
*BA54.15-P-1006-02B | ||
| 16 | Remove electric lines (10) from engine compartment pre-fuse box (F150/3) and remove engine compartment pre-fuse box (F150/3). | The electric lines (10) are coded and they cannot be swapped. |
|
| 17 | Install in the reverse order. |
FUSE AND RELAY BOX
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA54.15-P-1001-01M | Nut, positive line to pre-fuse box | M6 | Nm | 8 | 8 |
| M8 | Nm | 16 | 16 | ||
FUSE AND RELAY BOX
| Number | Designation | Model 247 | ||
|---|---|---|---|---|
| BA54.15-P-1001-01M | Nut, positive line to pre-fuse box | M6 | Nm | 8 |
| M8 | Nm | 16 | ||
FUSE AND RELAY MODULE
| Number | Designation | Model 243 | ||
|---|---|---|---|---|
| BA54.15-P-1006-02B | Nut, positive line to engine compartment pre-fuse box | M6 | Nm | 8 |
| M8 | Nm | 16 | ||
