Remove/Install Drive Program Switch Panel - AR54.21-P-0008MFA
Model 118.351/353/354/651/653/654, 177.051/053/054/151/951, 247.651/751/753/754

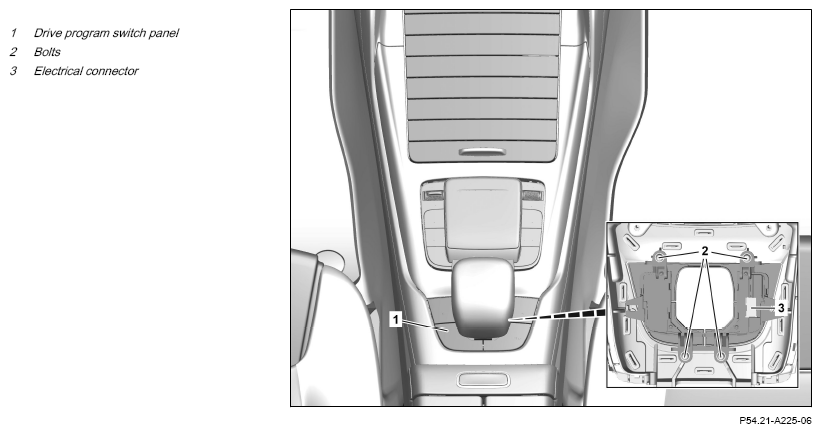

Shown on model 177.051
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove cover from center console until screws (2) and electrical connector (3) are accessible. | AR68.20-P-2350MFA | |
Do not crush or kink or subject electric lines to tension. This will otherwise result in damage to electric lines and can impair their function. |
|||
| 2 | Release and disconnect electrical connection (3). | ||
| 3 | Remove bolts (2). | ||
| 4 | Remove drive program switch panel (1). | ||
| 5 | Install in the reverse order. | ||
| 6 | Perform commissioning of drive program switch panel (1). | When replacing drive program switch panel (1). | |
| AD00.00-P-2000-06MFA |
