Remove/Install Augmented Reality Camera - AR54.30-P-0004MFA
Model 118, 177, 243, 247
with code 21U (Video recording function (Dashcam))
Model 118, 177, 243, 247
with code U19 (Augmented reality video)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

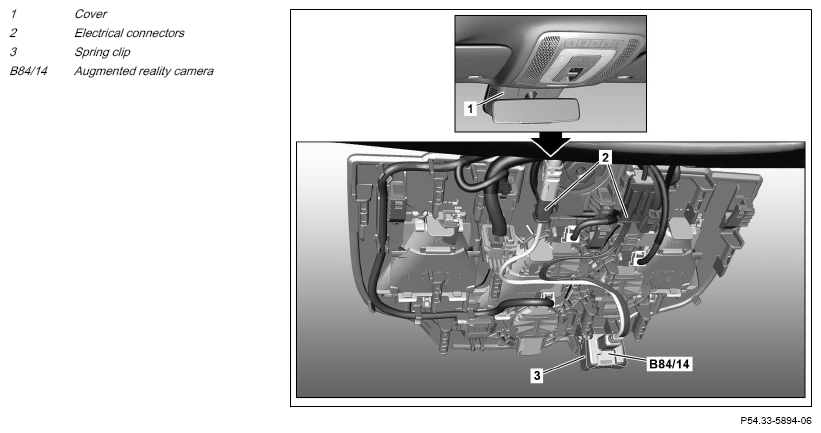

| 1 | Remove cover (1) | Fig 2 | |
| 2 | Release and disconnect electrical connectors (2) and remove from basic carrier. | ||
| 3 | Unhook spring clip (3) and remove augmented reality camera (B84/14). | Otherwise, soiling could lead to an augmented reality camera (B84/14) malfunction. |
|
| 4 | Install in the reverse order. | ||
| 5 | Perform commissioning of augmented reality camera (B84/14). | Model 118, 177, 243, 247 up to model year 2021 with code 21U (Video recording function (Dashcam)) with code U19 (Augmented reality video) If the augmented reality camera (B84/14) was replaced. |
|
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| AD00.00-P-2000-06MFA | |||
| 6 | Calibrate augmented reality camera (B84/14). | ||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| AD00.00-P-2000-06MFA |
