Remove/Install Engine Covers - AP01.10-P-2405-01K

Engine 139 in model 118, 177, 247

Courtesy of MERCEDES-BENZ USA

Shown on engine 139 in model 177.053

Courtesy of MERCEDES-BENZ USA

Shown on engine cover of engine 139 in model 177.053

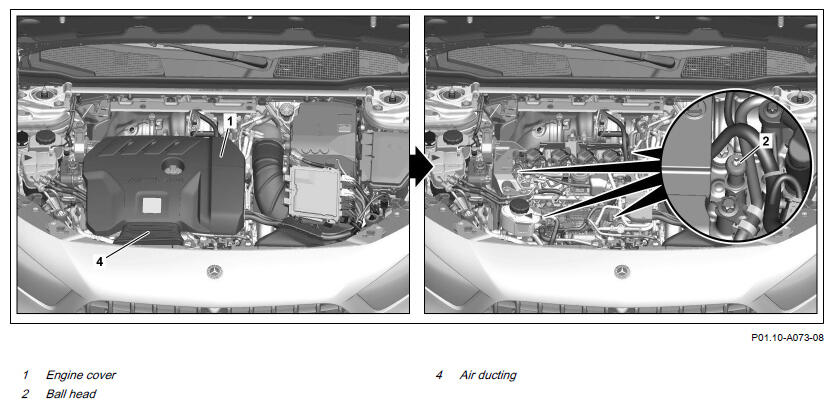

1. Unclip air ducting (4).
2. Remove engine cover (1).
3. Install in the reverse order.

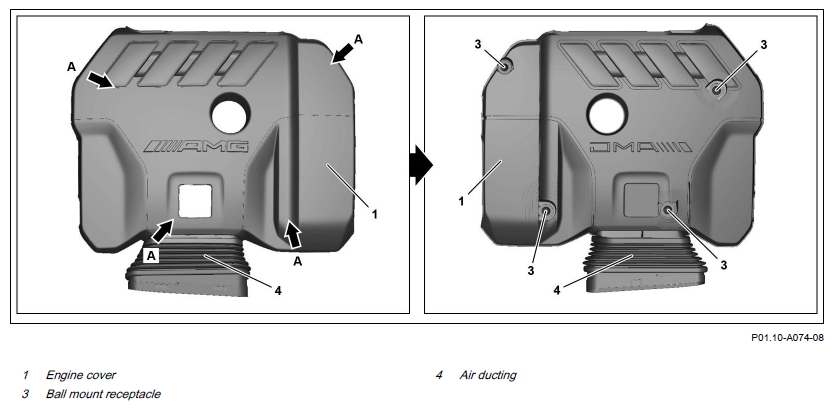

   When removing and installing the engine cover (1) always make sure that only the positions shown in the picture (arrows A) are used for pulling during removal or for pressing during installation. The ball heads (2) latch there into the ball mount receptacles (3). No force may be applied at any other points on the engine cover. The engine cover can get damaged if these instructions are not observed.
