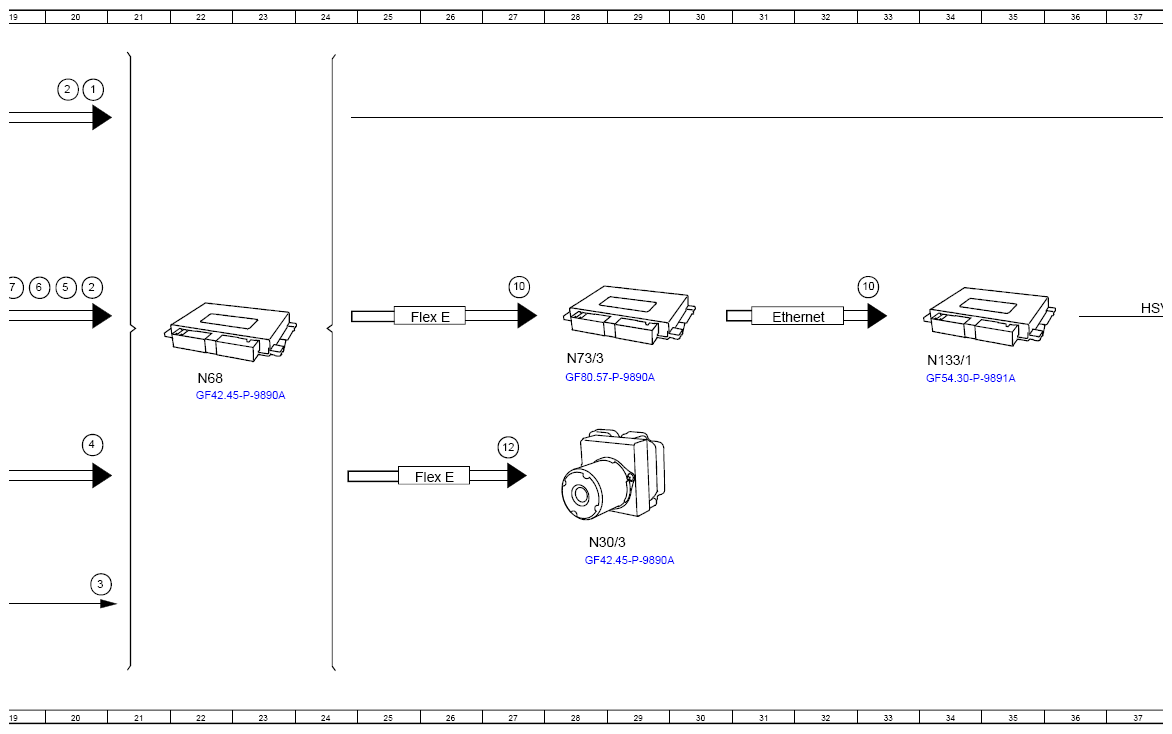

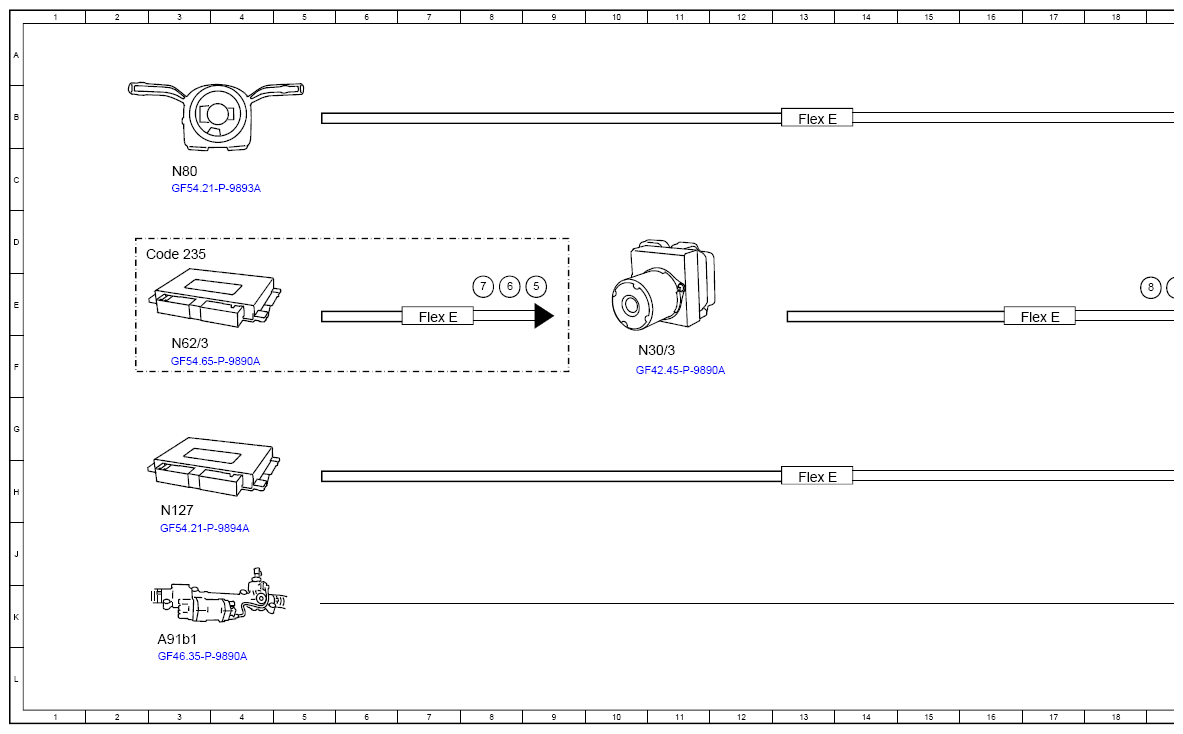

(Function Schematic For Electric Power Steering - PE46.35-P-2500-97D)
Model 192, 232, 295
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Steering wheel angle, signal | 20B |
| 10 | Instrument cluster message, request | 27E |
| 10 | Instrument cluster message, request | 33E |
| 11 | Image data, signal | 39E |
| 12 | Steer Assist, status | 27G |
| 2 | Steering wheel velocity, signal | 20B |
| 2 | Steering wheel velocity, signal | 20E |
| 3 | Electric power steering torque sensor, signal | 21K |
| 4 | Engine management, communication | 20H |
| 5 | Parking system control unit, status | 9E |
| 5 | Parking system control unit, status | 20E |
| 6 | Vehicle stop, signal | 8E |
| 6 | Vehicle stop, signal | 19E |
| 7 | Electric power steering, request | 8E |
| 7 | Electric power steering, request | 19E |
| 8 | Steering assistance, request | 18E |
| 9 | Power steering, actuation | 39B |
| A40/18 | Instrument cluster display | 40F |
| A91b1 | Electric power steering torque sensor | 3K |
| A91m1 | Electric power steering actuator motor | 39C |
| Code 235 | Active Park Assist | 2D |
| Ethernet | Ethernet | 31E |
| Flex E | Chassis FlexRay | 25E |
| Flex E | Chassis FlexRay | 17E |
| Flex E | Chassis FlexRay | 13H |
| Flex E | Chassis FlexRay | 26H |
| Flex E | Chassis FlexRay | 13B |
| Flex E | Chassis FlexRay | 7E |
| HSVL | High-speed video link | 37E |
| N127 | Drivetrain control unit | 3H |
| N133/1 | Instrument cluster control unit | 34F |
| N30/3 | Electronic Stability Program control unit | 28J |
| N30/3 | Electronic Stability Program control unit | 11F |
| N62/3 | Parking system control unit | 3F |
| N68 | Power steering control unit | 22F |
| N73/3 | Electronic ignition switch control unit | 28F |
| N80 | Steering column module control unit | 3C |
