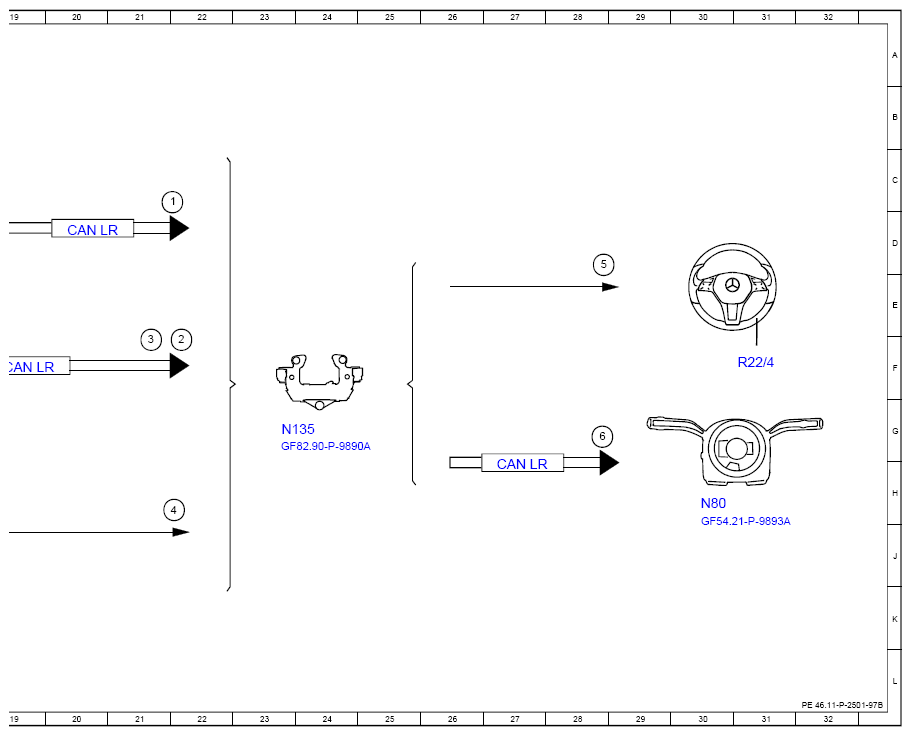

(Function Schematic For Actuating Steering Wheel Heater - PE46.11-P-2501-97B)
Model 223 with code 443 (Heated steering wheel)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Steering wheel heater switch, status | 22C |
| 2 | Interior temperature, signal | 13F |
| 2 | Interior temperature, signal | 22F |
| 2 | Interior temperature, signal | 7F |
| 3 | Circuit 15, status | 12F |
| 3 | Circuit 15, status | 21F |
| 4 | Heating element temperature sensor, signal | 22H |
| 5 | Steering wheel heater, actuation | 28D |
| 6 | Steering wheel heater switch, status | 28G |
| CAN B1 | CAN 1 for vehicle interior | 5F |
| CAN LR | CAN for steering wheel | 20D |
| CAN LR | CAN for steering wheel | 27H |
| CAN LR | CAN for steering wheel | 19F |
| Flex E | Chassis FlexRay | 11F |
| N10/6 | Front signal acquisition and actuation module control unit | 2G |
| N135 | Steering wheel electronics | 23G |
| N73/3 | Electronic ignition switch control unit | 8G |
| N80 | Steering column module control unit | 2E |
| N80 | Steering column module control unit | 30H |
| N80 | Steering column module control unit | 15G |
| R22/4 | Steering wheel heater | 3K |
| R22/4 | Steering wheel heater | 31F |
