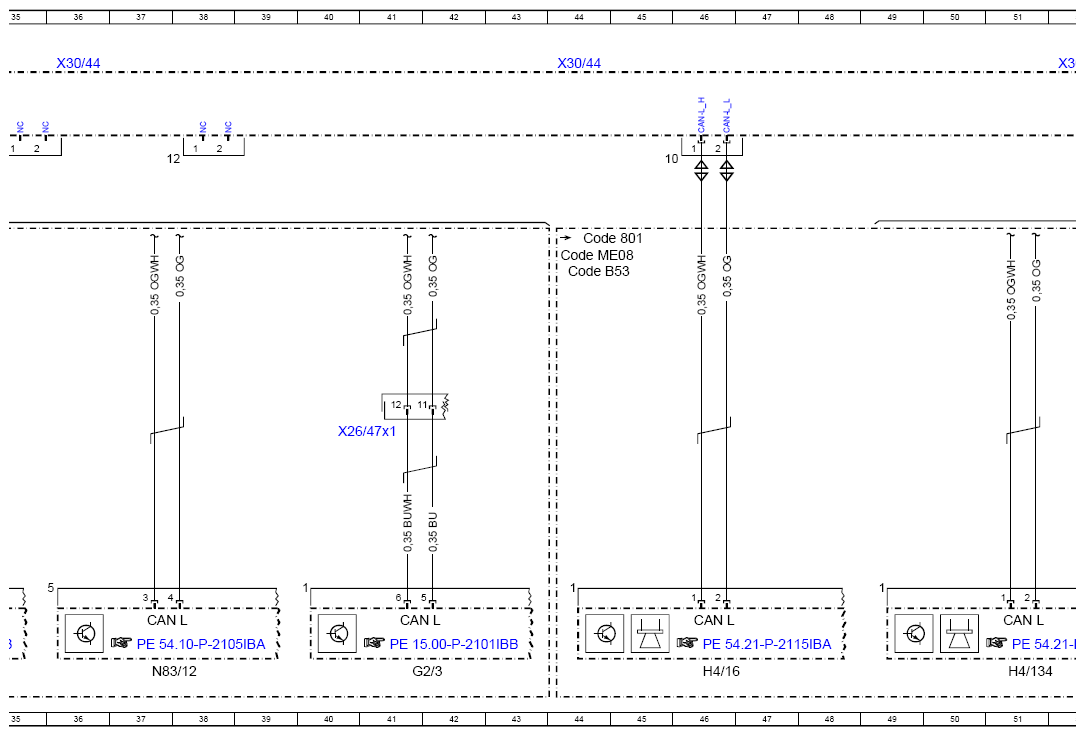

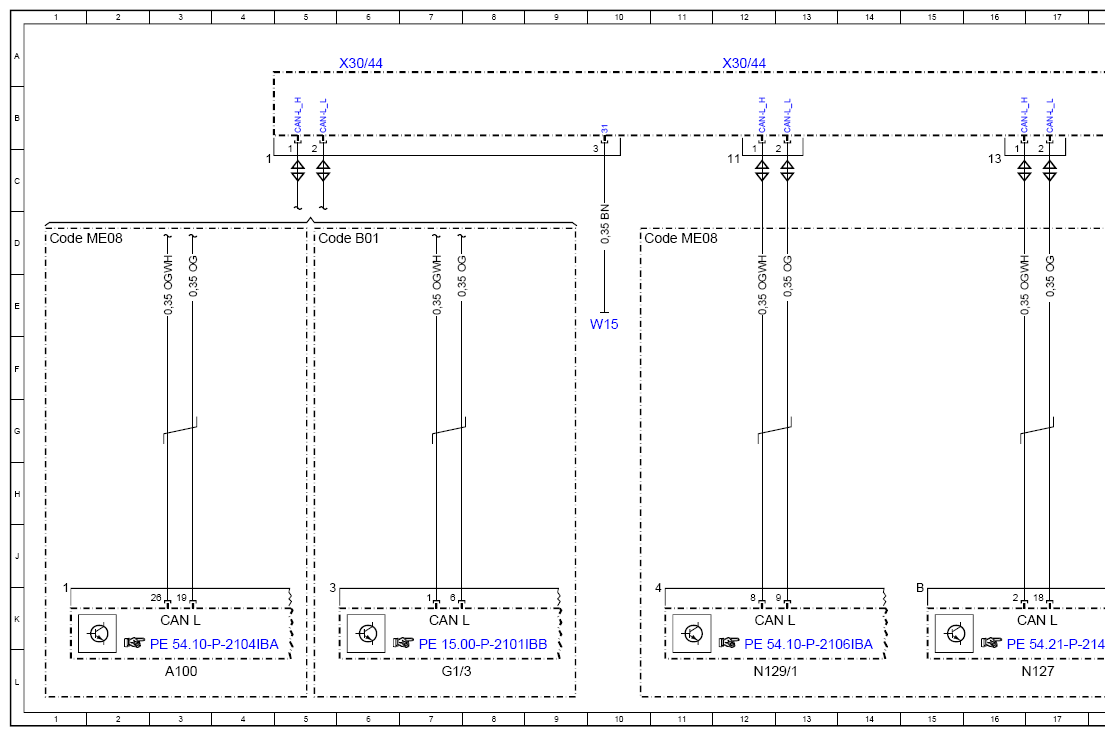

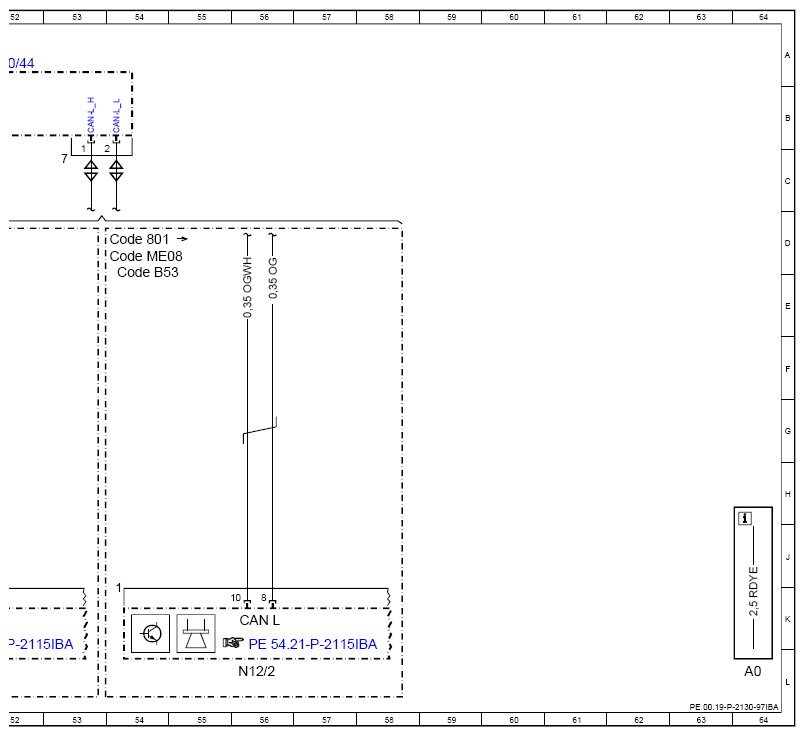

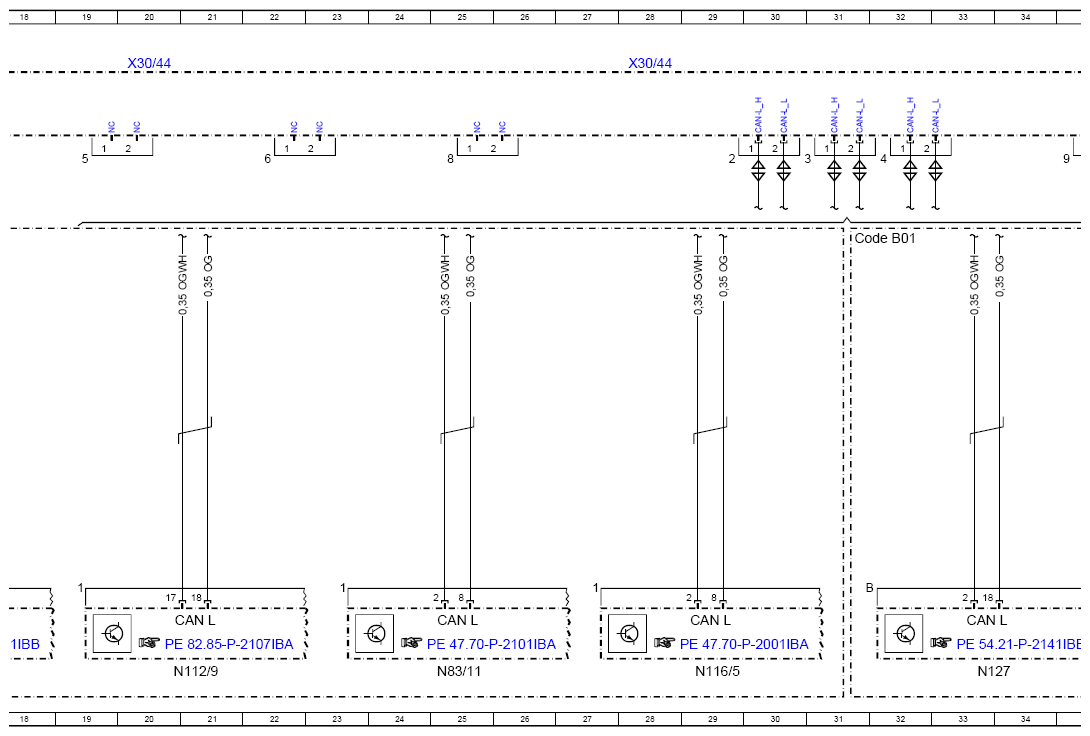

(Wiring Diagram, Hybrid CAN - PE00.19-P-2130-97IBA)
Model 177
with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
Hybrid CAN, X30/44 (CAN L)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A100 | High-voltage battery module | 3L |
| CAN L | Hybrid CAN | 3K |
| CAN L | Hybrid CAN | 7K |
| CAN L | Hybrid CAN | 12K |
| CAN L | Hybrid CAN | 21K |
| CAN L | Hybrid CAN | 41K |
| CAN L | Hybrid CAN | 25K |
| CAN L | Hybrid CAN | 29K |
| CAN L | Hybrid CAN | 37K |
| CAN L | Hybrid CAN | 46K |
| CAN L | Hybrid CAN | 51K |
| CAN L | Hybrid CAN | 17K |
| CAN L | Hybrid CAN | 33K |
| CAN L | Hybrid CAN | 56K |
| Code 801 | YoM 20/1 | 54D |
| Code 801 | YoM 20/1 | 44D |
| Code B01 | 48V technology | 5D |
| Code B01 | 48V technology | 31D |
| Code B53 | Acoustic ambient protection | 44E |
| Code B53 | Acoustic ambient protection | 54E |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 1D |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 10D |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 44D |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 54D |
| G1/3 | 48 V battery | 7L |
| G2/3 | Belt-driven starter alternator | 41L |
| H4/134 | Sound generator 2 | 51L |
| H4/16 | Sound generator | 46L |
| N112/9 | HERMES control unit | 21L |
| N116/5 | DC/DC converter charger | 29L |
| N12/2 | Sound generator control unit | 56L |
| N127 | Drivetrain control unit | 17L |
| N127 | Drivetrain control unit | 33L |
| N129/1 | Power electronics control unit | 12L |
| N83/11 | Alternating current charger for high-voltage battery | 25L |
| N83/12 | DC/DC converter (48 V) control unit | 37L |
| W15 | Right front footwell ground point | 10E |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 41G |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 6A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 12A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 20A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 28A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 36A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 44A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 52A |
