Remove/Install Heat Shield For Firewall - AR49.10-P-0001MFC
Model 118, 177, 247 with engine 260

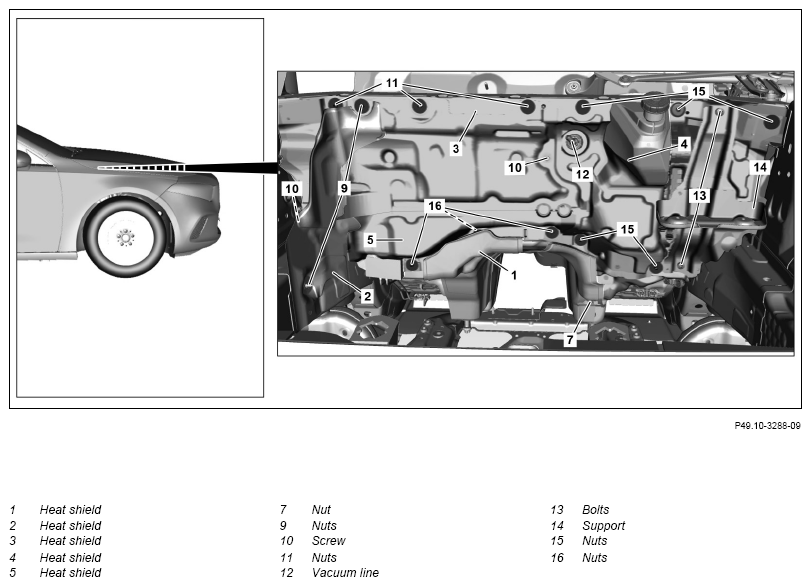

Shown on model 177
Shown on model 177
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Remove/install | |||
| 1 | Remove lower Engine compartment lining. | Model 118, 177, 247 with Engine 260 with code M016 (Uprated Engine) | AR61.20-P-1105MFR |
| Model 118, 177, 247 with Engine 260 except code M016 (Uprated Engine) | AR61.20-P-1105MFA | ||
| 2 | Release underfloor paneling on left and right in front area until nuts (7) can be accessed. | AR61.30-P-1001MFA | |
| 3 | Remove nuts (7) and loosen heat shield (1). | ||
| 4 | Remove nuts (9) and remove heat shield (2). | ||
| 5 | Remove battery carrier. | AR54.10-P-0028MFA | |
| 6 | Remove battery sensor (B95) ground line nut at body and place to one side. | ||
| *BA54.10-P-1004-01D | |||
| 7 | Remove retaining clips of inerting line, disconnect inerting line and place to one side. | Model 118, 177, 247 with Engine 260 with code 2U8 (Alternative refrigerant) | AR86.10-P-0119MFC |
| 8 | Remove screws (10). | ||
| 9 | Remove nuts (11). | ||
| 10 | Remove heat shield (3). | ||
| 11 | Remove cap of brake fluid reservoir and seal with protective cover. | ||
| Fig 1 | |||
| 12 | Unclip vacuum line (12). | ||
| 13 | Expose electric lines from support (14). | ||
| 14 | Unscrew screws (13) and remove bracing (14). | *BA54.10-P-1009-01D | |
| 15 | Unclip electrical wiring harness from heat shield (4). | Pay attention to the routing and padding of the wiring harness and electrical connector. To prevent noise development during vehicle operation. Do not crush or kink or subject lines to tension This would lead to damage to the lines and can impair their function. |
|
| 16 | Remove nuts (15). | ||
| 17 | Remove heat shield (4). | Carefully pull rubber section at heat shield (4) over brake fluid reservoir. Rubber section at heat shield (4) will otherwise be damaged. |
|
| 18 | Expose nuts (16). | ||
| 19 | Remove nuts (16) and remove heat shield (5). | ||
| 20 | Install in the reverse order. |
BATTERY
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA54.10-P-1004-01D | Nut, ground line (battery sensor) to body | Nm | 16 | 16 |
BATTERY
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA54.10-P-1004-01D | Nut, ground line (battery sensor) to body | Nm | 16 |
BATTERY
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA54.10-P-1009-01D | Bolts, battery carrier to body | Nm | 23 | 23 |
BATTERY
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA54.10-P-1009-01D | Bolts, battery carrier to body | Nm | 23 |
