Reversing Camera Control Unit, Detailed Information - GF54.65-P-0012A
Model 118, 177, 247
with code 218 (Rear view camera)
Model 167.1
with code 218 (Rear view camera)
Model 293
with code 218 (Rear view camera)
Location in the handle strip of the trunk lid

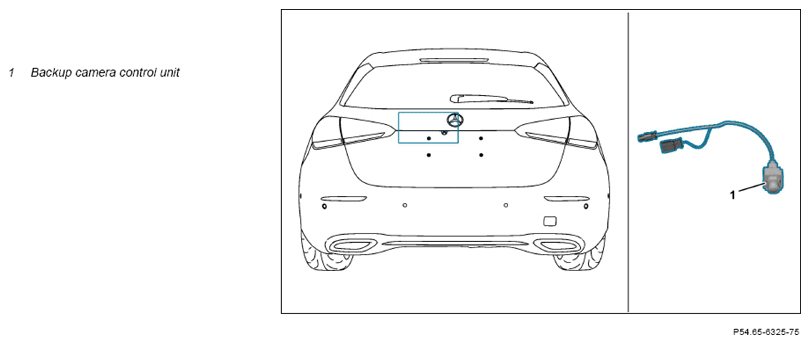

Fig 1: Reversing Camera Control Unit In The Handle Strip Of The Trunk Lid Components Location - Model 177 With Code 218
Location centrally in the trunk lid behind the brand emblem

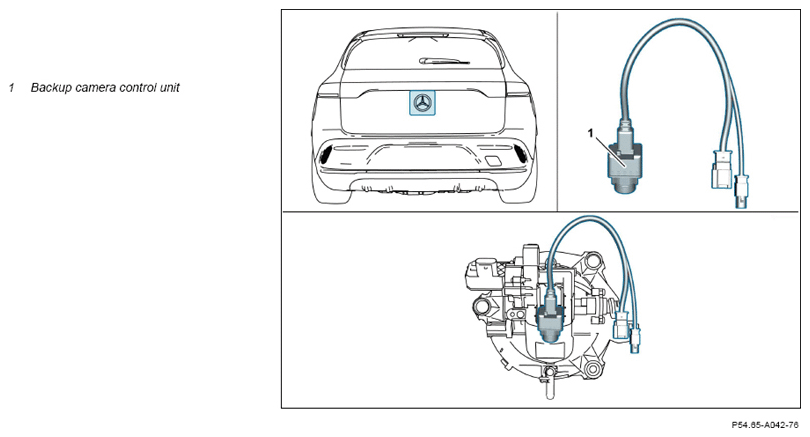

Fig 2: Reversing Camera Control Unit In Trunk Lid Behind The Brand Emblem Components Location - Model 177 With Code 218
Location
The reversing camera control unit is located, depending on the vehicle model, either in the handle strip of the trunk lid or centrally in the trunk lid behind the market emblem.
