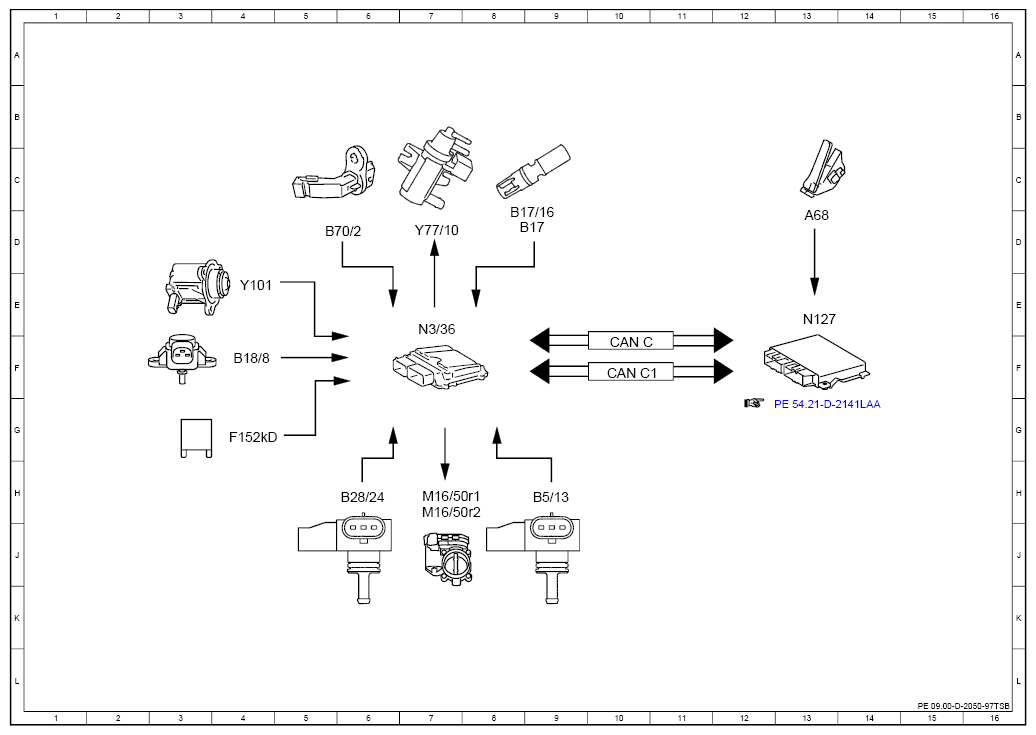

| A68 |
Accelerator pedal module |
13D |
| B17 |
Charge air temperature sensor upstream of throttle valve |
9D |
| B17/16 |
Charge air temperature sensor downstream of throttle valve |
8D |
| B18/8 |
Pressure sensor downstream of air filter |
4F |
| B28/24 |
Intake manifold pressure sensor |
6H |
| B5/13 |
Pressure sensor upstream of throttle valve |
9H |
| B70/2 |
Crankshaft Hall sensor |
5D |
| CAN C |
Drive train CAN |
10F |
| CAN C1 |
Engine CAN |
10F |
| F152kD |
Tml. 87M relay |
4G |
| M16/50r1 |
Actual value potentiometer 1 |
7H |
| M16/50r2 |
Actual value potentiometer 2 |
7H |
| N127 |
Drivetrain control unit |
13E |
| N3/36 |
ME-SFI [ME] control unit |
7E |
| Y101 |
Divert air switchover valve |
4E |
| Y77/10 |
Boost pressure control pressure transducer |
7D |
