Tightening Procedure For Throttle Valve Actuator - Ar09.41-D-1330-01TSR
Engine 651 in model 907
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BA09.41-N-1004-01TSR | Bolt, charge air line with throttle valve actuator to charge air pipe | Nm | 10 |

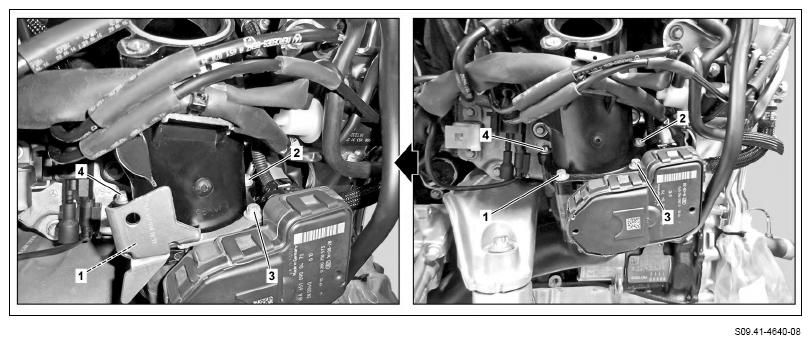

- Tighten screw/bolts (1, 23, 4) of throttle valve actuator in numerical sequence
.
Indicated tightening procedure must be complied with.
Charge air line may otherwise be put under tension.
