Tightening Procedure For Charge Air Distributor - Ar09.41-D-8683-01TSC
Engine 274 in model 907
CHARGE AIR DISTRIBUTOR
| Number |
Designation |
Engine 274 in model 907 |
| BA09.41-N-1002-01V |
Screw/bolt, charge air distributor to cylinder head |
Nm |
14 |
Always adhere to the specified tightening sequence.
Consequential damage can occur to the engine otherwise.

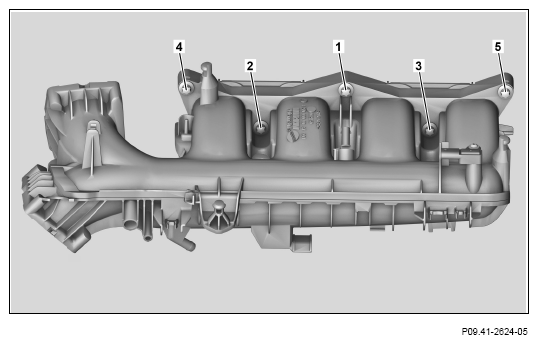

- Tighten screws (1, 2, 3, 4, 5) of charge-air distributor in numerical order
