Notes on avoiding damage through contamination and foreign objects |
|
AH00.00-P-5000-01A |
  |
Remove/install |
|
|
| 1 |
Remove air intake pipe. |
|
AR09.10-D-8131TSV |
| 2 |
Remove screw/bolt (1). |
|
|
| 3 |
Remove holder (2). |
|
|
| 4 |
Remove the bracket (3). |
For this purpose, remove bolts (4). |
|
| |
|
Bolt, charge air line for exhaust gas turbocharger to bracket |
*BA09.41-N-1001-01O |
| 5 |
Unscrew the bolts (5, 6). |
Bolt from turbocharger noise damper to holder |
*BA09.41-N-1003-01O |
| 6 |
Remove the bracket (7). |
Proceed by first removing the screw/bolts (8). |
|
| |
|
Bolt, charge air line for exhaust gas turbocharger to bracket |
*BA09.41-N-1001-01O |
| 7 |
Remove the vacuum line (9). |
|
|
| 8 |
Remove the noise damper (10) with charge air line (11). |
Seal the connections for the components remaining in the vehicle.
: Replace the sealing rings and wet them with antifriction paste. |
|
| Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 |
*BR00.45-Z-1002-06A |
Set of protective covers |

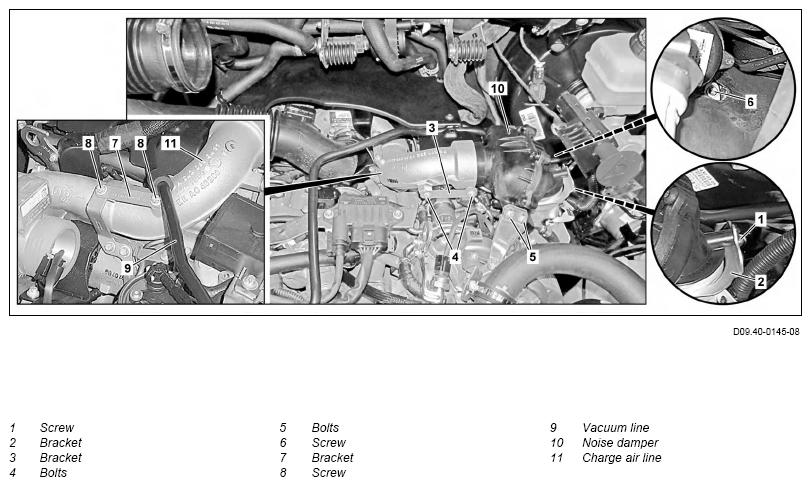

Fig 1 |
| 9 |
Remove the noise damper (10) from the charge air line (11). |
: Replace the sealing ring and wet with antifriction paste.
Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 |
*BR00.45-Z-1002-06A |
| 10 |
Install in the reverse order |
|
|
 |
Check |
|
|
 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 11 |
Check for leaktightness when engine is running. |
Visual inspection only. |
|
