Remove/Install Oil Supply Connection Fitting Of Turbocharger - Ar09.40-D-6023TSV
Engine 642 in model 907
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove exhaust gas turbocharger. | AR09.40-D-6020TSV | |

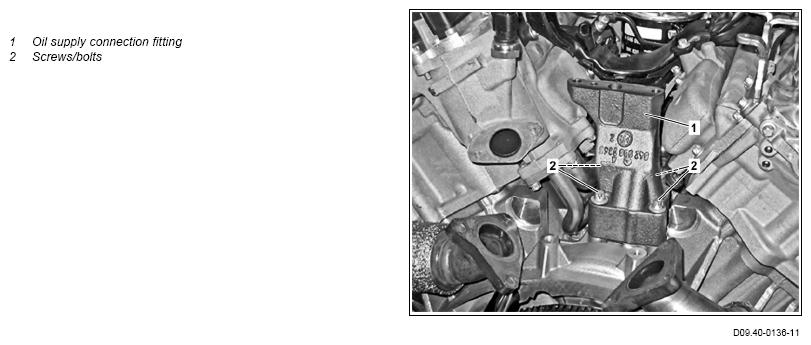

| 2 | Remove screws/bolts (2) | *BA09.40-N-1002-02TSV | |
| 3 | Remove oil supply connection fitting (1) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Check for leak tightness with engine running |
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA09.40-N-1002-02TSV | Bolt, oil supply connection fitting to crankcase | Nm | 20 |
