Remove/Install Intake Port Shutoff Actuator Motor - Ar09.20-D-1313TSF

Engine 651 in model 907

	Remove/install
1	Remove engine cover.	Model 907 with engine 651	AR01.10-D-2405TSR
			AR01.10-D-2405TSF

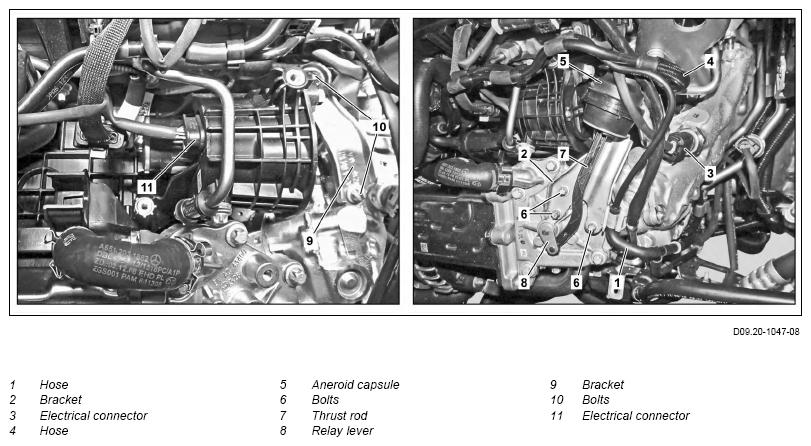

2	Remove hose (1) from bracket (2).
3	Disconnect electrical connector (3).
4	Remove hose (4) from diaphragm capsule (5).
5	Remove screw/bolts (6).	Bolt holder for vacuum cell bypass flap to bypass flap	*BA14.20-N-1006-01TS
6	Remove diaphragm capsule (5).	For this purpose, remove push rod (7) from relay lever (8).
7	Remove bracket (9).	For this purpose, remove screws (10).
8	Separate electrical connector (11).

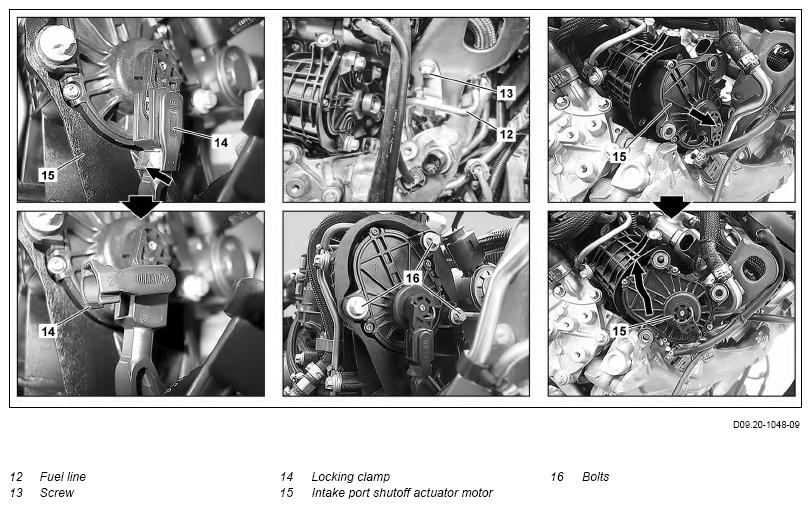

9	Release fuel line (12).	To do so, remove screw/bolt (13).
		M6	*BA00.10-N-1002-01A
10	Release retainer (14) upwards and remove.
11	Remove bolts (16).	Model 907 with engine 651 Screw/bolt, intake port shutoff actuator motor to charge air distributor	*BA09.41-N-1012-01TSR
			*BA09.41-N-1006-01TSF
12	Remove inlet port shutoff actuator motor (15).	To do this, pull out intake port shutoff actuator motor (15), tilt, twist somewhat, and remove upward. WIS Service Media  wsm://04_201800_61
13	Install in the reverse order

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number	Designation			8.8	10.9
BA00.10-N-1002-01A	M6	Galvanized	Nm	9	13
		Phosphated	Nm	9	12

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number	Designation			12.9
BA00.10-N-1002-01A	M6	Galvanized	Nm	16
		Phosphated	Nm	14

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 651 in model 907
BA09.41-N-1012-01TSR	Screw/bolt, intake port shutoff actuator motor to charge air distributor	Nm	9
