Risk of injury.
Skin or eye injuries may result when handling hot or glowing objects. |
Wear protective gloves, protective clothing and safety glasses, if necessary. |
AS00.00-Z-0002-01A |
  |
Remove/install |
|
|
| 1 |

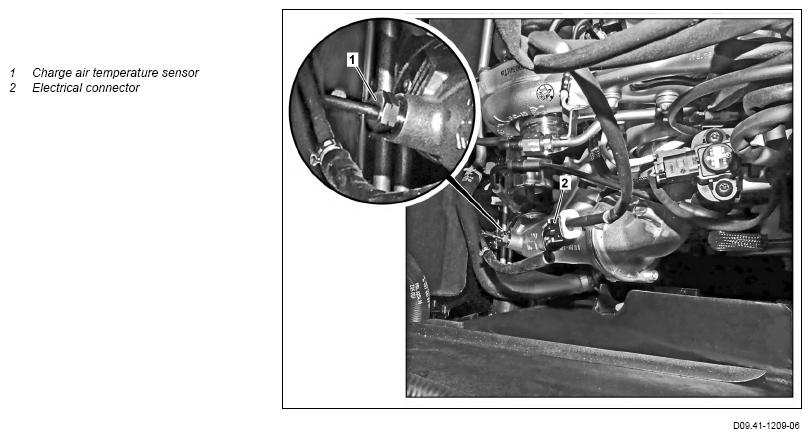

Remove electrical connector (2) from air intake pipe |
|
|
| 2 |
Disconnect electrical connection (2) |
|
|
| 3 |
Remove charge air temperature sensor (1) |
Charge air temperature sensor to exhaust gas turbocharger |
*BA09.41-N-1001-01TSR |
| 4 |
Install in the reverse order |
|
|
 |
Check |
|
|
|
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 5 |
Check for leaktightness with engine running |
Visual inspection only. |
|
