Remove/Install Charge Air Hose Upstream Of Charge Air Cooler - Ar09.41-D-8621TSR
Engine 642 in model 907
Engine 651 in model 907

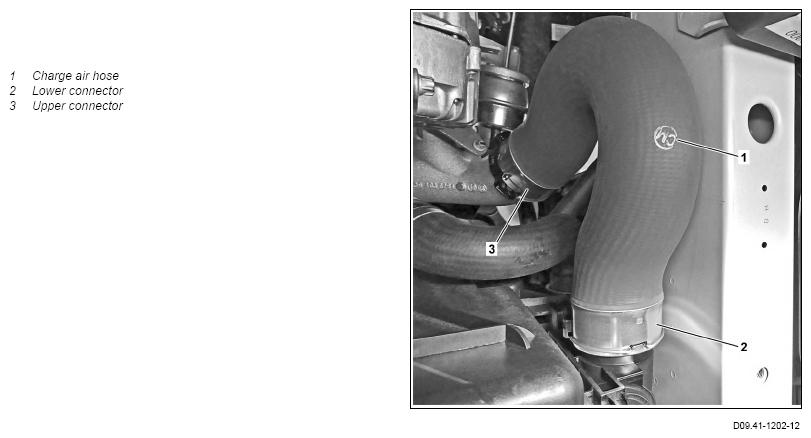

Shown on model 907 with engine 651

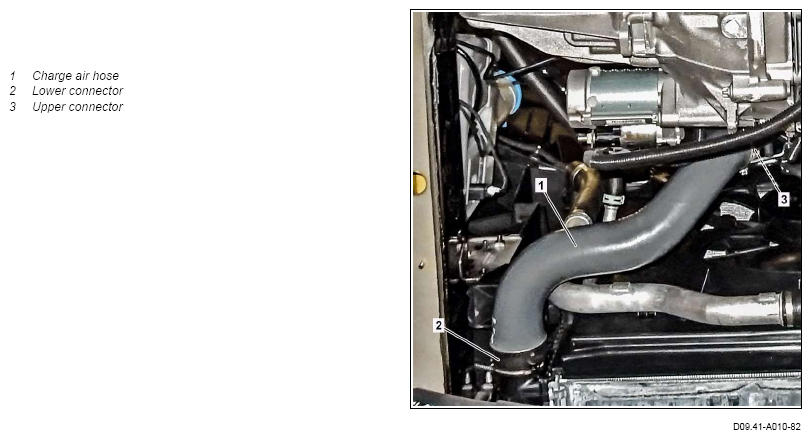

Shown on model 907 with engine 642
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 2 | Remove lower engine compartment paneling | Model 907 with code XM1 (Noise abatement measures) |
AR61.20-D-1105TS |
| 3 | Remove upper coupling (3). | AR09.41-D-1311-01WE | |

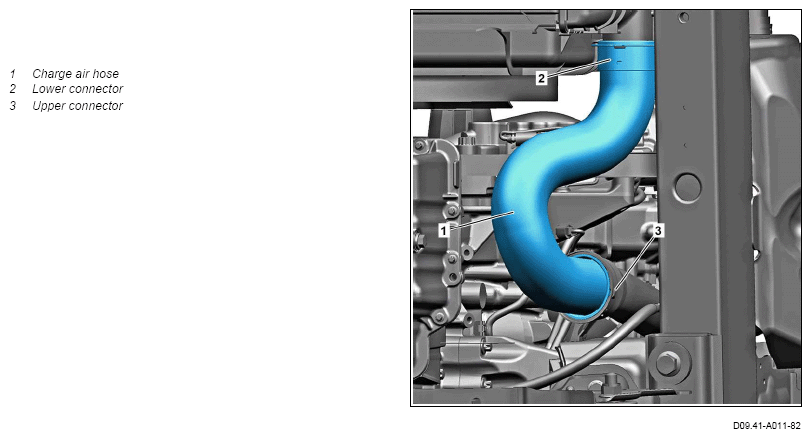

| Fig 1 | |||
| 4 | Remove lower coupling (2). | AR09.41-D-1311-01WE | |
| Fig 1 | |||
| 5 | Remove charge air hose (1). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Check for leaktightness when engine is running. |
