Detach/Attach Coolant Lines Of Turbocharger - Ar09.40-D-6020-18TSC
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A |
Engine 274 in model 907
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA09.40-N-1008-02F | Screw/bolt, coolant line to exhaust gas turbocharger | Nm | 9 |
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA09.40-N-1009-02F | Screw/bolt, coolant line to coolant pump | Nm | 9 |
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA09.40-N-1010-02F | Screw/bolt, coolant line to cylinder head | Nm | 9 |

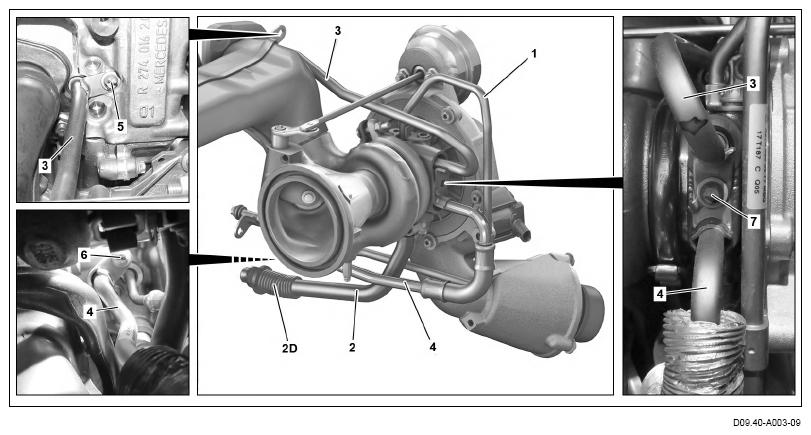

- Remove screw (7) and remove coolant return line (3) from the exhaust gas turbocharger
.
Replace seals.
- Remove screw (5) and remove coolant return line (3)
- Remove screw (6) and pull coolant feed pipe (4) out of the exhaust gas turbocharger and coolant pump and remove
- Install in the reverse order.
