Removing, Installing Ventilation Housing - Ar83.10-D-0010TS
Model 907 with engine 274
Model 907 with engine 642, 651

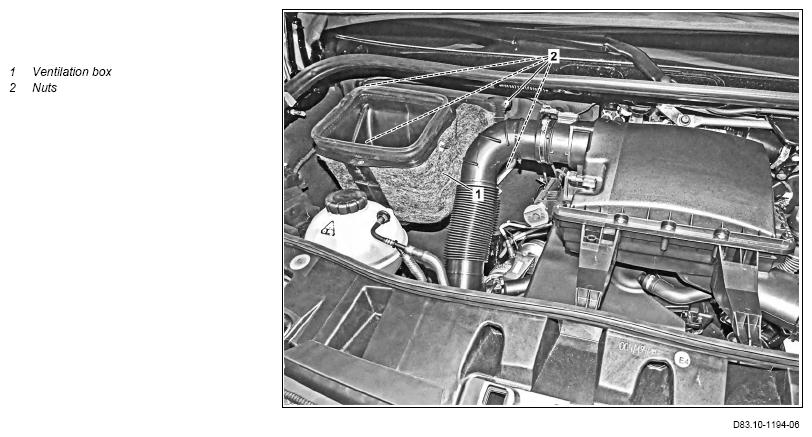

Shown on model 907 with engine 651
  |
Remove/install |
|
| 1 |
Unscrew nuts (2). |
|
| 2 |
Remove ventilation box (1). |
Check seals for damage. If seals are damaged, ↓ Replace ventilation box (1). |
| 3 |
Install in the reverse order |
|
