Remove/Install Condenser - Ar83.30-D-6540TSC
Model 907 with engine 274
MODIFICATION NOTES
| 07.12.2020 | Work procedure updated | The whole document |
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0006-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on handling refrigerant R134a | AH83.30-N-0003-01A | ||
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Remove/install | |||

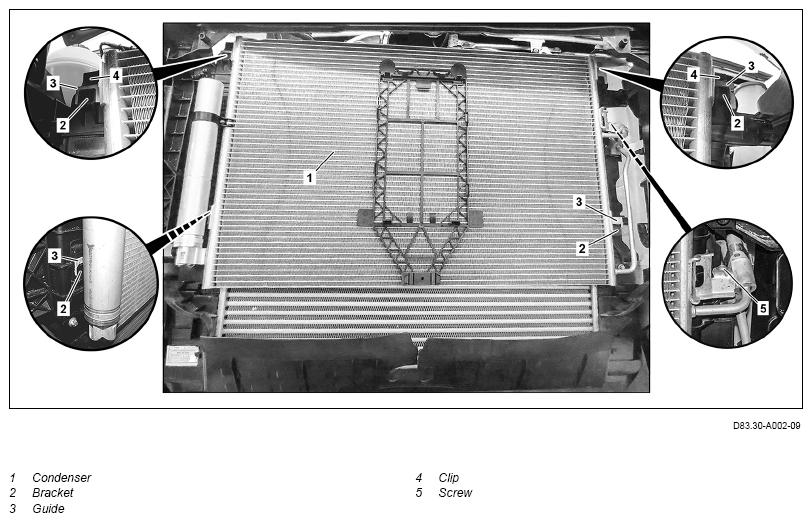

| 1 | Remove condenser (1) together with cooler. | AR20.20-D-3865TSC | |
| 2 | Remove screw (5). | ||
| 3 | Remove condenser (1). | AR83.30-D-6520TSR | |
| 4 | Transfer pressure sensor for refrigerant. | If condenser (1) is replaced. | AR83.30-D-5445TSF |
| 5 | Install in the reverse order. |
