Slacken, Tension Poly-V Belt - Ar13.22-D-3902-05TSR

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Pin for locking poly-V belt tensioning device		WF58.50-S-1325-02S

Engine 651 in model 907

Slacken

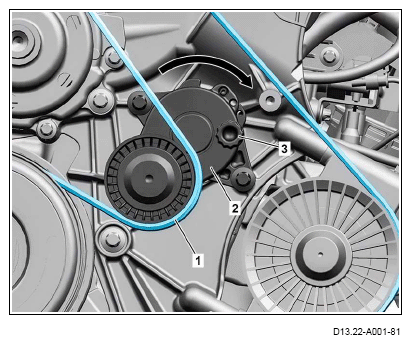

1. Turn tensioning device (2) clockwise (arrow) at 12- point bolt (3) against spring force until both bores of tensioning device (2) overlap.
2. Arrest clamping device (2) with a pin.

   To do this, insert pin through the overlapping bores of the clamping device (2).

   The poly-V-belt (1) is now relieved.

   Tensioning

3. Swivel clamping device (2) clockwise (arrow) against the spring force at the 12-point bolt (3) until the pin can be removed.
4. Remove pin and relieve clamping device (2).

Ensure correct installation position of poly-V-belt (1).

Otherwise, belt drive can be damaged.

The poly-V-belt (1) is now relieved.
