Routing Diagram For Poly-V Belt - Ar13.22-D-3902-02TSV

Engine 642 in model 907

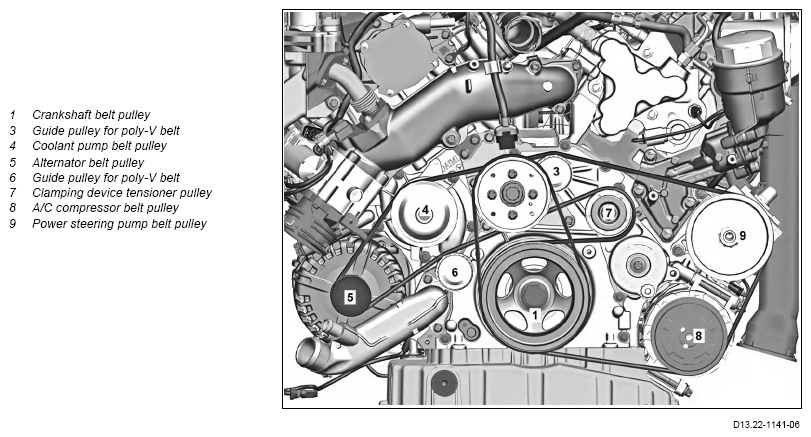

Shown except code HH4 (THERMOTRONIC automatic climate control), except code HH9 (TEMPMATIC semi-automatically regulated air conditioning system), except code ZG1 (All-wheel drive, engageable), and except code ZG3 (Engageable all-wheel drive with gear reduction)

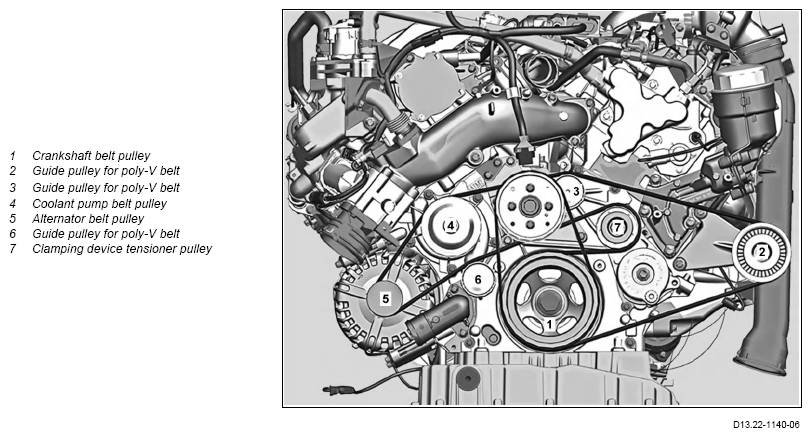

Shown with code HH9 (TEMPMATIC semi-automatically regulated air conditioning system) and with ZG3 (Engageable all-wheel drive with gear reduction)
