Routing Diagram For Poly-V Belt - Ar13.22-D-3902-02TSR

Engine 651 in model 907

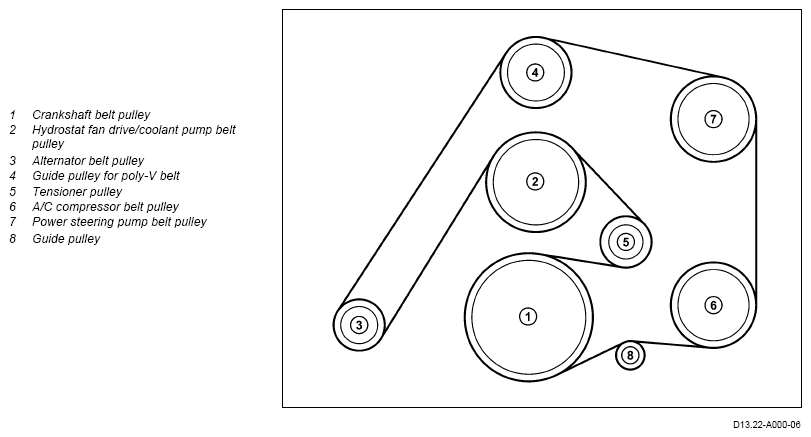

Poly-V-belt routing diagram for except code ZG1 (all-wheel drive, engageable) and except code ZG3 (engageable all-wheel drive with gear reduction)

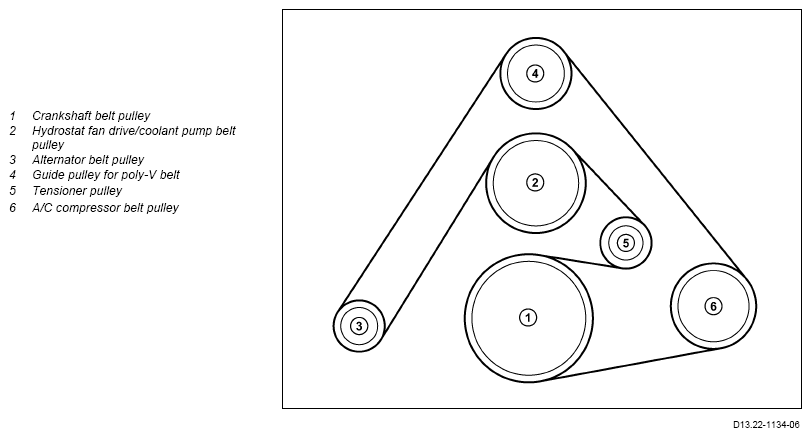

Poly-V-belt routing diagram with code ZG1 (all-wheel drive, engageable) or with code ZG3 (engageable all-wheel drive with gear reduction)
