Special Instructions For Lifting And Supporting Vehicle - Ah00.60-N-0100-01TS

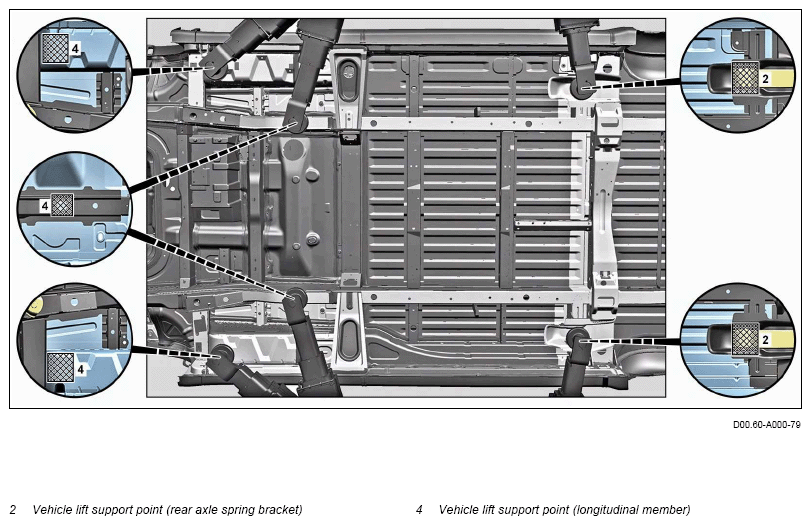

Model 907

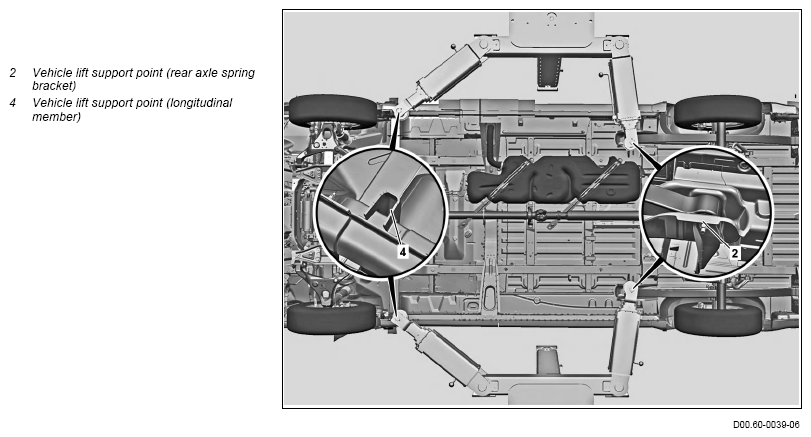

Model 907

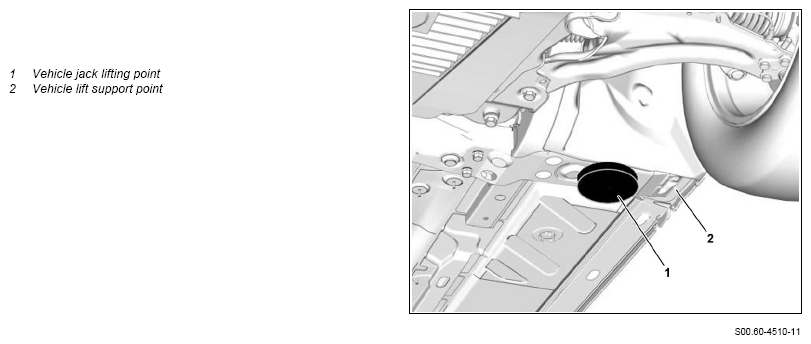

Model 415, shown on front left side of vehicle

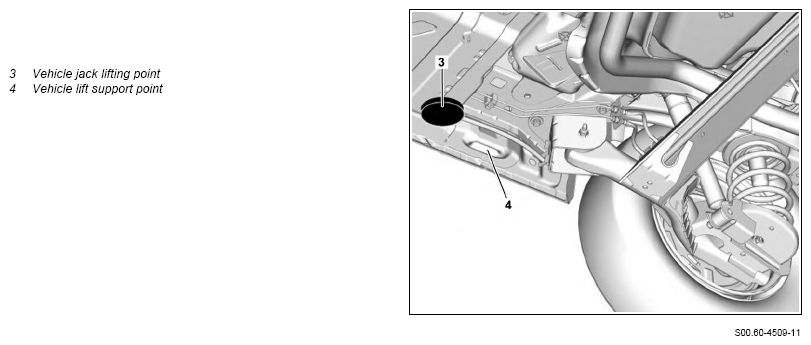

Model 415, shown on rear right side of vehicle

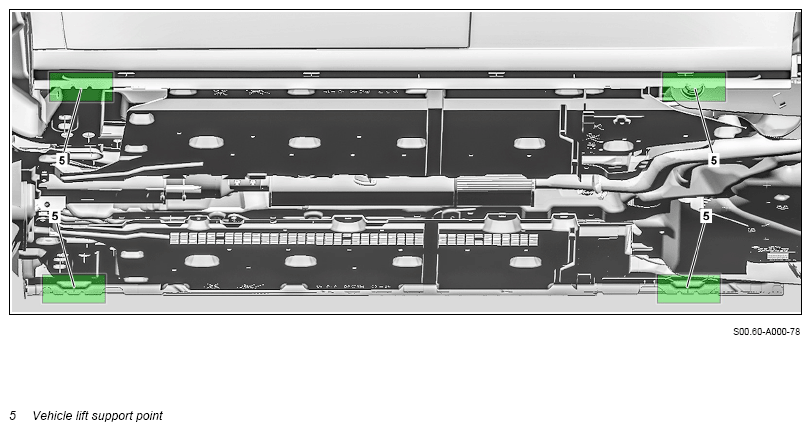

Model 420

Only use the specified lifting and support points. Otherwise damage and safety risks may arise.

Do not lift or jack up the vehicle on other frame sections, sheet metal folds or engine parts.

Otherwise this can result in damage.

Model 415

The jack lifting points (1, 3) are only to be used for short-term lifting of the vehicle (e.g. wheel change). If longer loads are expected, jack stands must be used for relief.

Otherwise, damage may occur.

The vehicle lift support points (2, 4) are also the jacking points when using jack stands.
