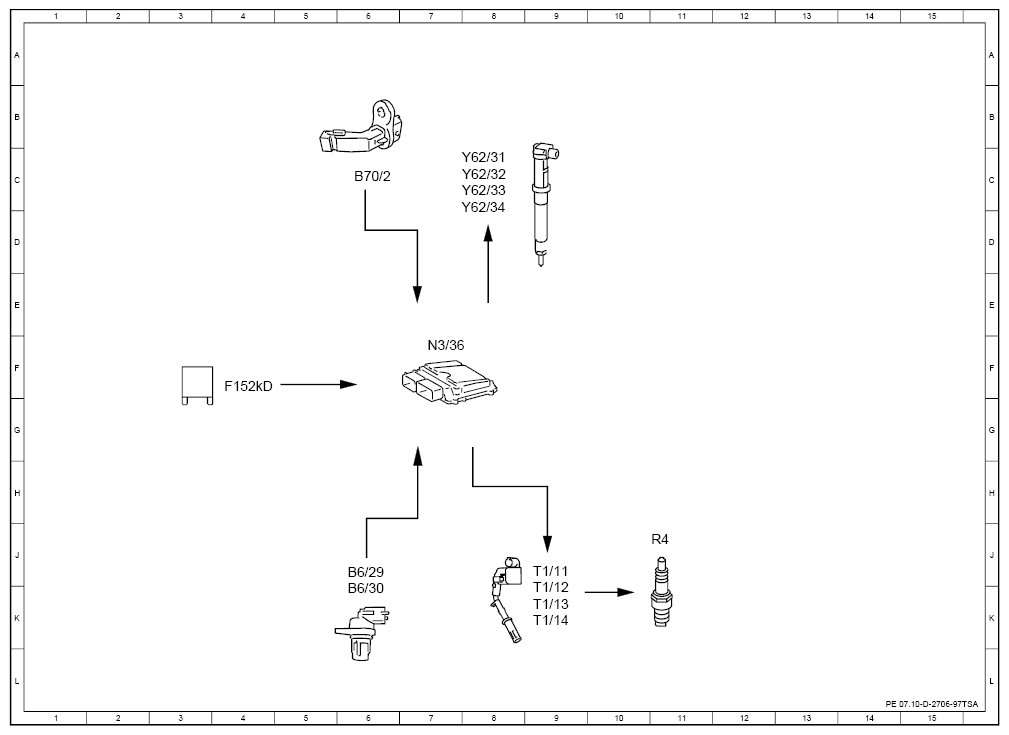

Electrical Function Schematic, Synchronization Of The Injection And Firing Order - Pe07.10-D-2706-97TSA

Code:	Designation:	Position:
B6/29	Intake camshaft Hall sensor	6J
B6/30	Exhaust camshaft Hall sensor	6K
B70/2	Crankshaft Hall sensor	6C
F152kD	Tml. 87M relay	4F
N3/36	ME-SFI [ME] control unit	7F
R4	Spark plugs	11J
T1/11	Cylinder 1 ignition coil	9J
T1/12	Cylinder 2 ignition coil	9K
T1/13	Cylinder 3 ignition coil	9K
T1/14	Cylinder 4 ignition coil	9K
Y62/31	Cylinder 1 fuel injector	7C
Y62/32	Cylinder 2 fuel injector	7C
Y62/33	Cylinder 3 fuel injector	7C
Y62/34	Cylinder 4 fuel injector	7D
