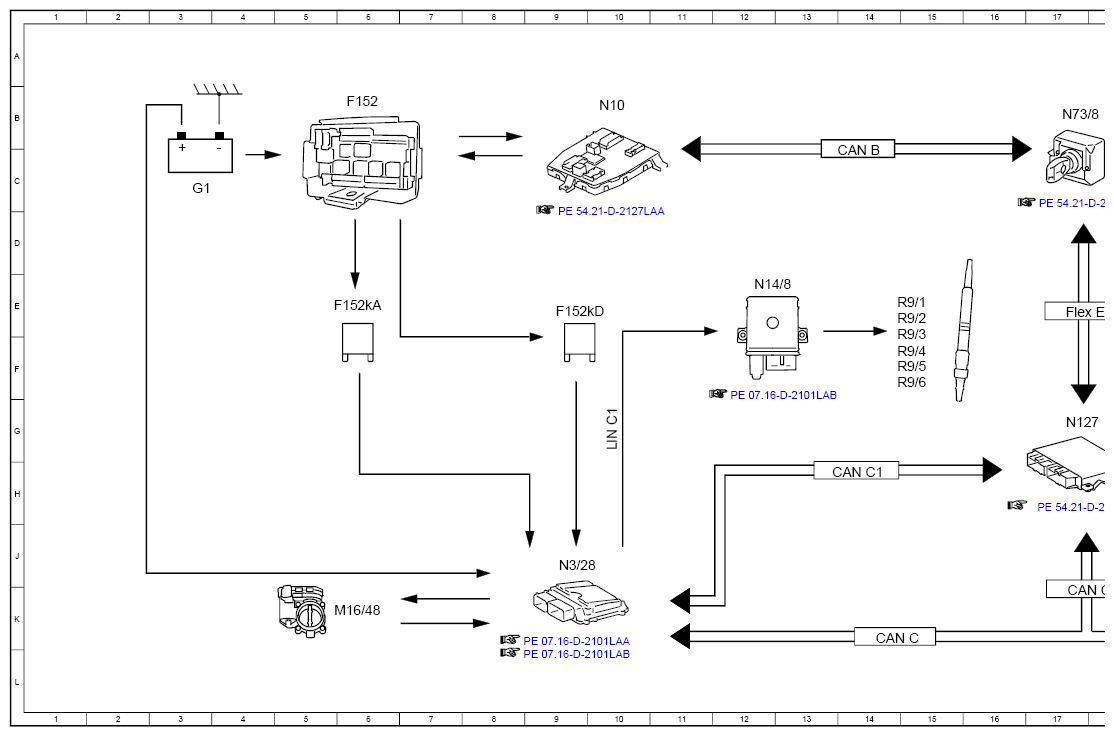

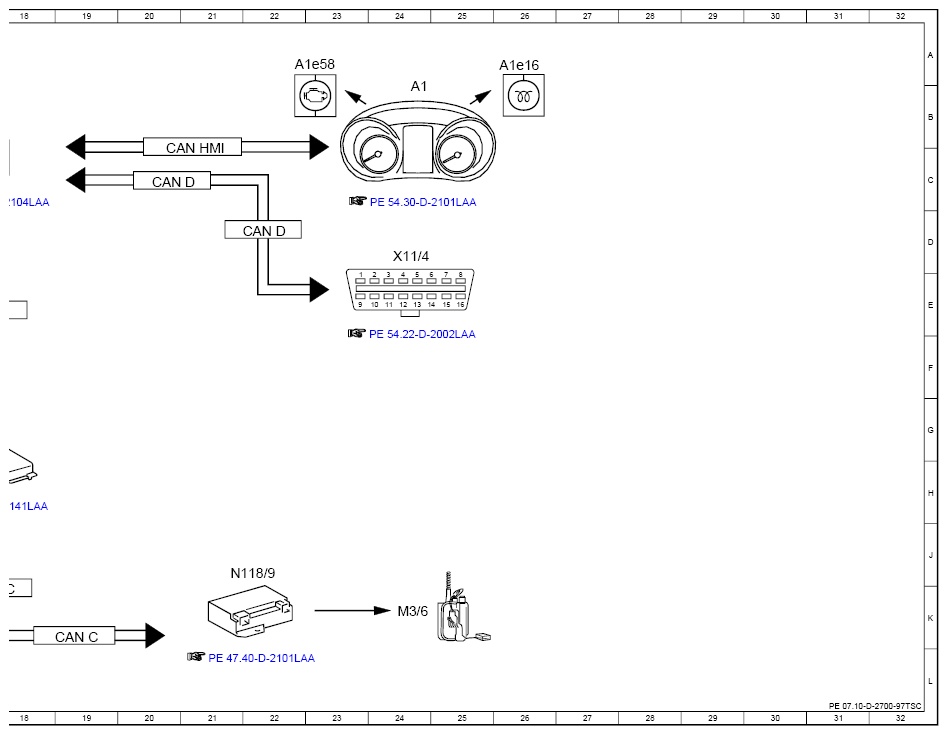

| A1 |
Instrument cluster |
24B |
| A1e16 |
Preglow indicator lamp |
26A |
| A1e58 |
Engine diagnosis indicator lamp |
22A |
| CAN B |
Interior CAN |
14C |
| CAN C |
Drive train CAN |
14K |
| CAN C |
Drive train CAN |
19K |
| CAN C |
Drive train CAN |
17K |
| CAN C1 |
Engine CAN |
14H |
| CAN D |
Diagnostic CAN |
20C |
| CAN D |
Diagnostic CAN |
22D |
| CAN HMI |
User interface CAN |
21C |
| F152 |
Vehicle interior fuse and relay module |
6B |
| F152kA |
Tml 15 relay 1 |
6E |
| F152kD |
Tml. 87M relay |
9E |
| Flex E |
Chassis FlexRay |
17E |
| G1 |
On-board electrical system battery |
3C |
| LIN C1 |
Drive train LIN |
10G |
| M16/48 |
Throttle valve actuator |
6K |
| M3/6 |
Fuel pump with fill level sensor |
24K |
| N10 |
SAM control unit |
10B |
| N118/9 |
Fuel pump control unit |
21J |
| N127 |
Drivetrain control unit |
17G |
| N14/8 |
Glow output stage |
12E |
| N3/28 |
CDI control unit |
9J |
| N73/8 |
Electronic ignition lock (EZS) control unit |
17B |
| R9/1 |
Cylinder 1 glow plug |
14E |
| R9/2 |
Cylinder 2 glow plug |
14E |
| R9/3 |
Cylinder 3 glow plug |
14F |
| R9/4 |
Cylinder 4 glow plug |
14F |
| R9/5 |
Cylinder 5 glow plug |
14F |
| R9/6 |
Cylinder 6 glow plug |
14F |
| X11/4 |
Diagnostic connector |
24D |
