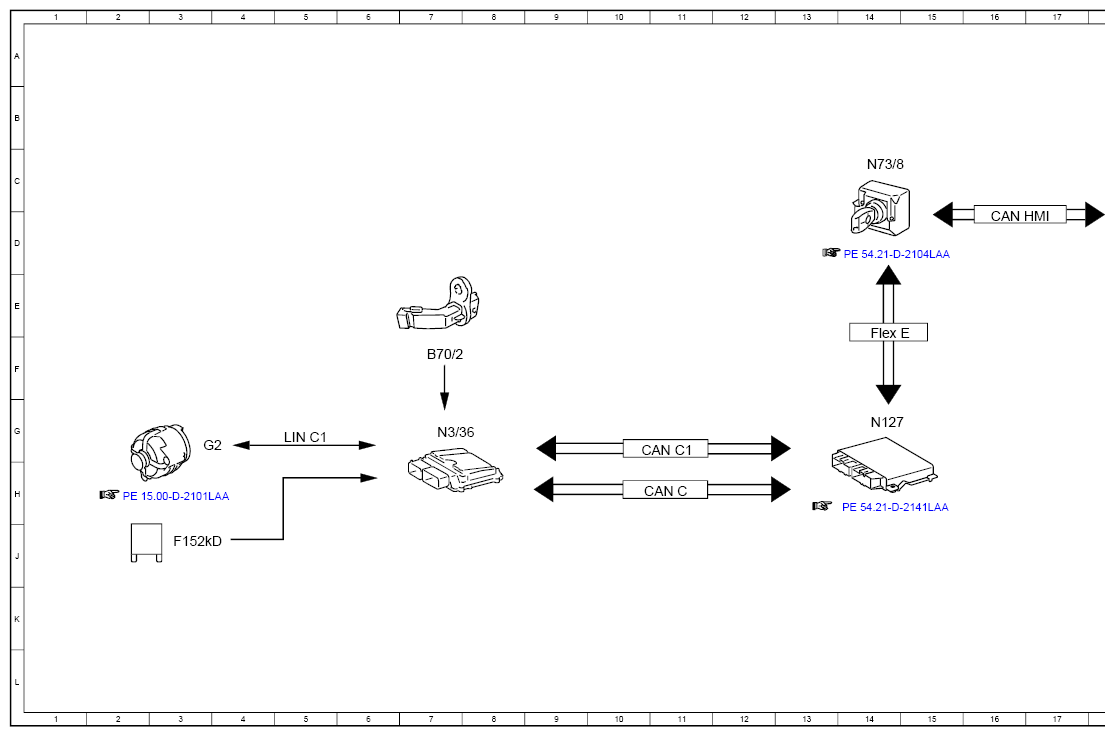

Electrical Function Schematic, Alternator Interface - Pe07.10-D-2709-97TSB
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 19C |
| B70/2 | Crankshaft Hall sensor | 7F |
| CAN C | Drive train CAN | 11H |
| CAN C1 | Engine CAN | 11G |
| CAN HMI | User interface CAN | 16D |
| F152kD | Tml. 87M relay | 3J |
| Flex E | Chassis FlexRay | 14F |
| G2 | Alternator | 3G |
| LIN C1 | Drive train LIN | 5G |
| N127 | Drivetrain control unit | 14G |
| N3/36 | ME-SFI [ME] control unit | 7G |
| N73/8 | Electronic ignition lock (EZS) control unit | 14C |
