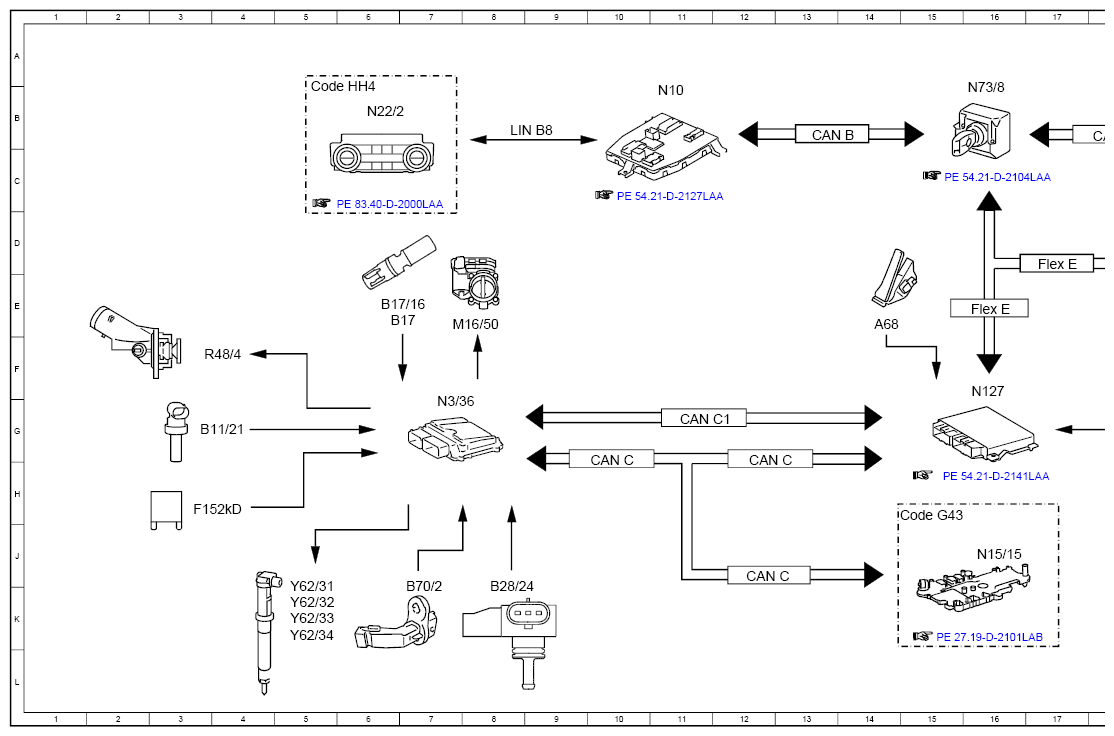

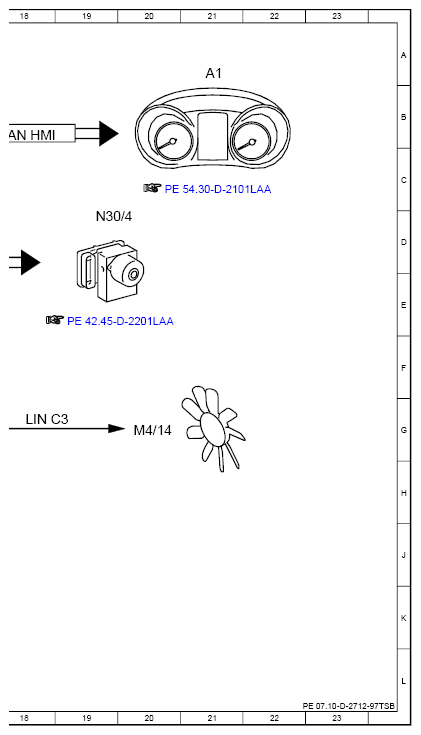

| A1 |
Instrument cluster |
21A |
| A68 |
Accelerator pedal module |
14E |
| B11/21 |
Coolant temperature sensor |
3G |
| B17 |
Charge air temperature sensor upstream of throttle valve |
6E |
| B17/16 |
Charge air temperature sensor downstream of throttle valve |
6E |
| B28/24 |
Intake manifold pressure sensor |
8K |
| B70/2 |
Crankshaft Hall sensor |
7K |
| CAN B |
Interior CAN |
13B |
| CAN C |
Drive train CAN |
12H |
| CAN C |
Drive train CAN |
12J |
| CAN C |
Drive train CAN |
10H |
| CAN C1 |
Engine CAN |
11G |
| CAN HMI |
User interface CAN |
18B |
| Code G43 |
Automatic transmission 9G-TR0NIC |
14H |
| Code HH4 |
THERMOTRONIC automatic air conditioning |
5B |
| F152kD |
Tml. 87M relay |
3H |
| Flex E |
Chassis FlexRay |
16E |
| Flex E |
Chassis FlexRay |
17D |
| LIN B8 |
Climate control LIN |
8B |
| LIN C3 |
Drivetrain LIN |
18G |
| M16/50 |
Throttle valve actuator |
7E |
| M4/14 |
Cooler fan |
20G |
| N10 |
SAM control unit |
11B |
| N127 |
Drivetrain control unit |
16F |
| N15/15 |
Fully integrated transmission control (VGS) electric controller unit |
16J |
| N22/2 |
Automatic air conditioning control and operating unit |
6B |
| N3/36 |
ME-SFI [ME] control unit |
7G |
| N30/4 |
ESP® control unit |
19D |
| N73/8 |
Electronic ignition lock (EZS) control unit |
16B |
| R48/4 |
Thermostat heating element |
4F |
| Y62/31 |
Cylinder 1 fuel injector |
5K |
| Y62/32 |
Cylinder 2 fuel injector |
5K |
| Y62/33 |
Cylinder 3 fuel injector |
5K |
| Y62/34 |
Cylinder 4 fuel injector |
5K |
