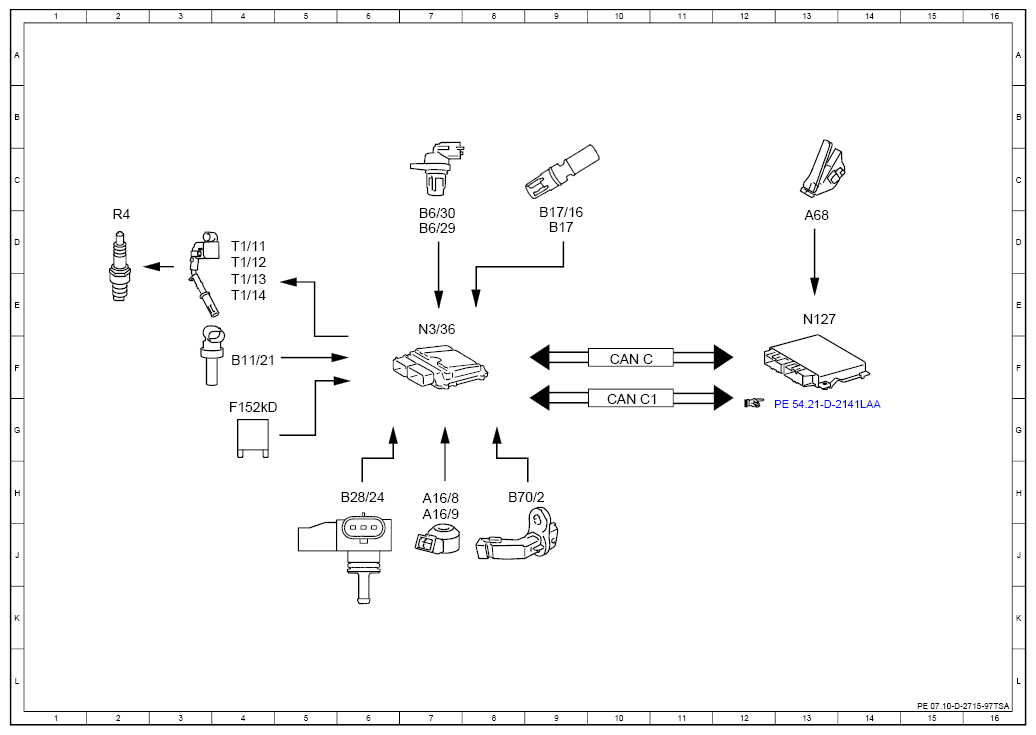

| A16/8 |
Knock sensor 1 |
7H |
| A16/9 |
Knock sensor 2 |
7H |
| A68 |
Accelerator pedal module |
13D |
| B11/21 |
Coolant temperature sensor |
4F |
| B17 |
Charge air temperature sensor upstream of throttle valve |
9D |
| B17/16 |
Charge air temperature sensor downstream of throttle valve |
9D |
| B28/24 |
Intake manifold pressure sensor |
6H |
| B6/29 |
Intake camshaft Hall sensor |
7D |
| B6/30 |
Exhaust camshaft Hall sensor |
7D |
| B70/2 |
Crankshaft Hall sensor |
8H |
| CAN C |
Drive train CAN |
10F |
| CAN C1 |
Engine CAN |
10G |
| F152kD |
Tml. 87M relay |
4G |
| N127 |
Drivetrain control unit |
13E |
| N3/36 |
ME-SFI [ME] control unit |
7E |
| R4 |
Spark plugs |
2D |
| T1/11 |
Cylinder 1 ignition coil |
4D |
| T1/12 |
Cylinder 2 ignition coil |
4D |
| T1/13 |
Cylinder 3 ignition coil |
4E |
| T1/14 |
Cylinder 4 ignition coil |
4E |
