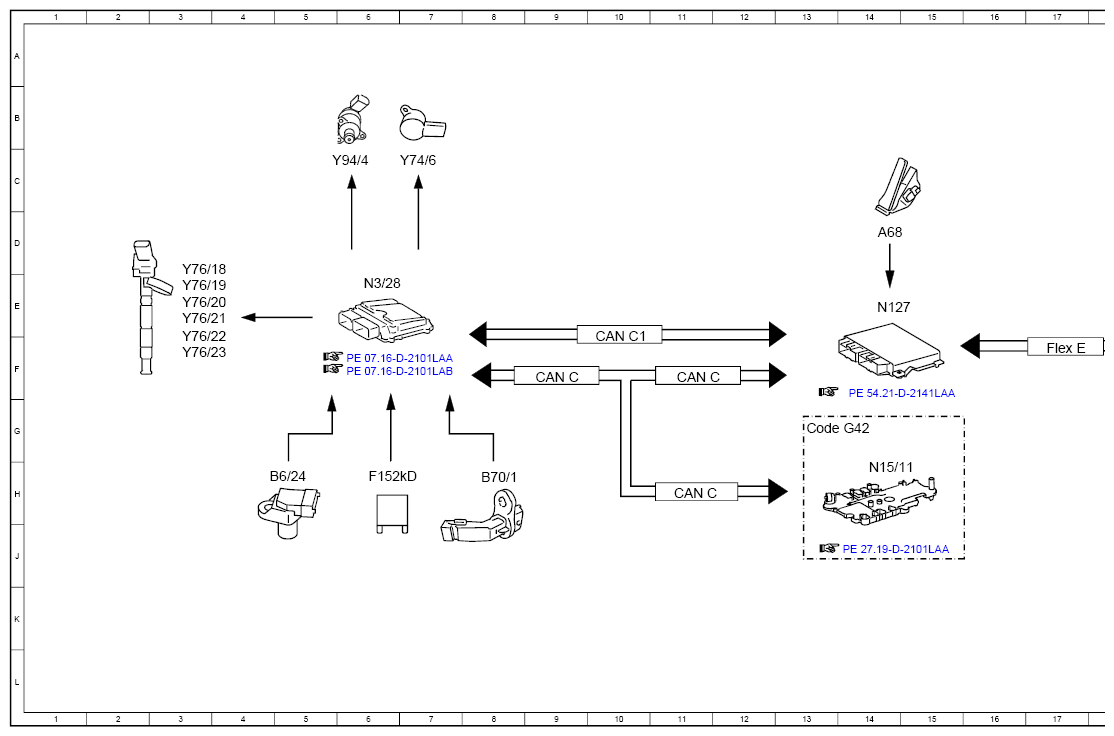

Electrical Function Schematic For Engine Limp-Home Mode - Pe07.10-D-2719-97TSC
| Code: | Designation: | Position: |
|---|---|---|
| A68 | Accelerator pedal module | 14D |
| B6/24 | RPM sensor | 5H |
| B70/1 | Crankshaft position sensor | 8H |
| CAN C | Drive train CAN | 11F |
| CAN C | Drive train CAN | 11H |
| CAN C | Drive train CAN | 9F |
| CAN C1 | Engine CAN | 10F |
| Code G42 | 7G-TRONIC PLUS | 13G |
| F152kD | Tml. 87M relay | 6H |
| Flex E | Chassis FlexRay | 17F |
| N127 | Drivetrain control unit | 14E |
| N15/11 | Fully integrated transmission control (VGS) electric controller unit | 14H |
| N3/28 | CDI control unit | 6E |
| N30/4 | ESP® control unit | 20E |
| Y74/6 | Pressure regulator valve | 7C |
| Y76/18 | Cylinder 1 injector | 3D |
| Y76/19 | Cylinder 2 injector | 3E |
| Y76/20 | Cylinder 3 injector | 3E |
| Y76/21 | Cylinder 4 injector | 3E |
| Y76/22 | Cylinder 5 injector | 3F |
| Y76/23 | Cylinder 6 injector | 3F |
| Y94/4 | Quantity control valve | 5C |
