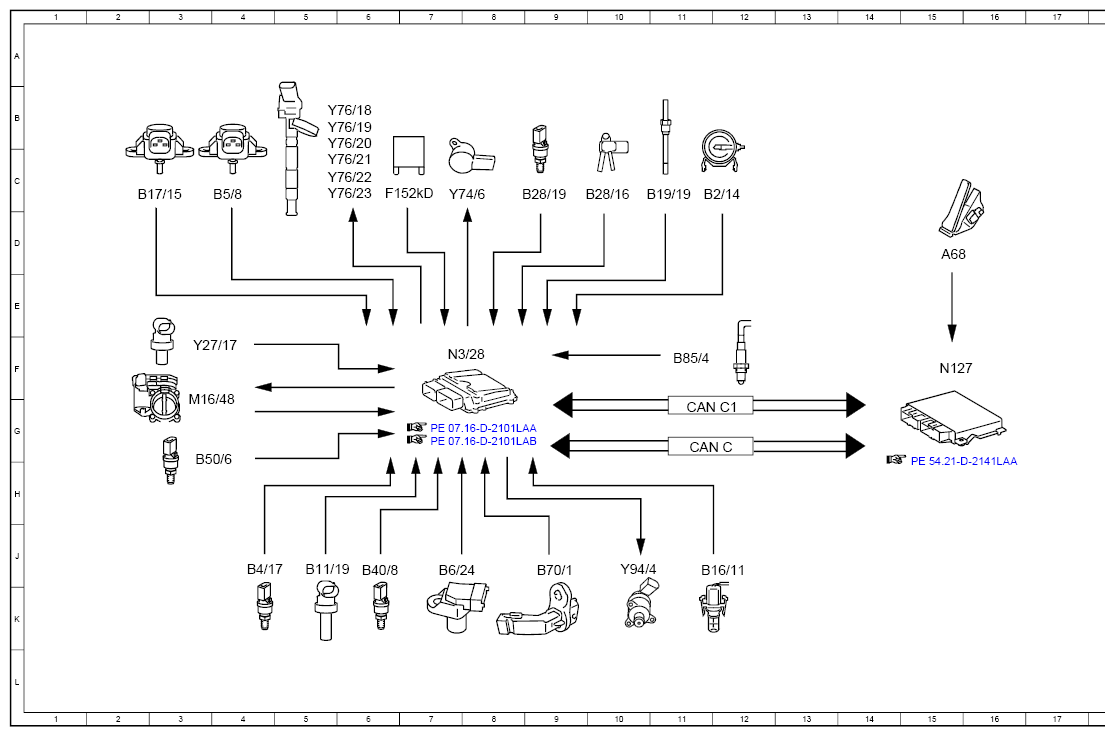

Electrical Function Diagram For Injection Control - Pe07.10-D-2704-97TSC

Code: Designation: Position:
A68 Accelerator pedal module 15D
B11/19 Coolant temperature sensor 5J
B16/11 Temperature sensor upstream of turbocharger 11J
B17/15 Charge air temperature sensor 2C
B19/19 Temperature sensor upstream of diesel particulate filter 10C
B2/14 Hot film mass air flow sensor 11C
B28/16 Differential pressure sensor (DPF) 9C
B28/19 Intake manifold pressure sensor 8C
B4/17 Fuel pressure sensor 4J
B40/8 Engine oil sensor 6J
B5/8 Boost pressure sensor 4C
B50/6 Fuel temperature sensor 3H
B6/24 Rpm sensor 7J
B70/1 Crankshaft position sensor 9J
B85/4 Oxygen sensor 11F
CAN C Drive train CAN 11G
CAN C1 Engine CAN 11G
F152kD Tml. 87M relay 6C
M16/48 Throttle valve actuator 3G
N127 Drivetrain control unit 15F
N3/28 CDI control unit 7F
Y27/17 Exhaust gas recirculation positioner 3F
Y74/6 Pressure regulator valve 7C
Y76/18 Cylinder 1 injector 5B
Y76/19 Cylinder 2 injector 5B
Y76/20 Cylinder 3 injector 5B
Y76/21 Cylinder 4 injector 5C
Y76/22 Cylinder 5 injector 5C
Y76/23 Cylinder 6 injector 5C
Y94/4 Quantity control valve 10J
G13786760
G13786761
