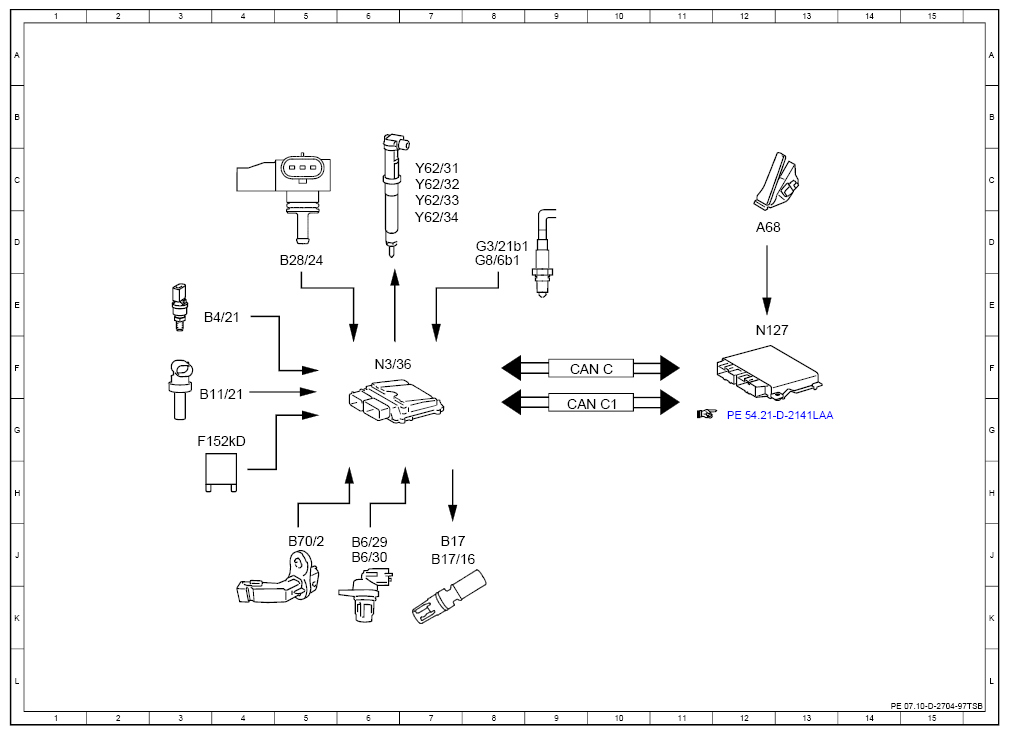

Electrical Function Diagram For Injection Control - Pe07.10-D-2704-97TSB

Code: Designation: Position:
A68 Accelerator pedal module 12D
B11/21 Coolant temperature sensor 3G
B17 Charge air temperature sensor upstream of throttle valve 7J
B17/16 Charge air temperature sensor downstream of throttle valve 7J
B28/24 Intake manifold pressure sensor 5D
B4/21 Fuel pressure and temperature sensor 3E
B6/29 Intake camshaft Hall sensor 6J
B6/30 Exhaust camshaft Hall sensor 6J
B70/2 Crankshaft Hall sensor 5J
CAN C Drive train CAN 9F
CAN C1 Engine CAN 9G
F152kD Tml. 87M relay 3G
G3/21b1 Sensor element of oxygen sensor downstream of catalytic converter 8D
G8/6b1 Sensor element of oxygen sensor upstream of catalytic converter 8D
N127 Drivetrain control unit 12E
N3/36 ME-SFI [ME] control unit 6F
Y62/31 Cylinder 1 fuel injector 7C
Y62/32 Cylinder 2 fuel injector 7C
Y62/33 Cylinder 3 fuel injector 7C
Y62/34 Cylinder 4 fuel injector 7D
G13786759
