Remove/Install Exhaust Gas RECIRCULATION Valve - Ar14.20-D-7662TSV

Engine 642 in model 907

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install

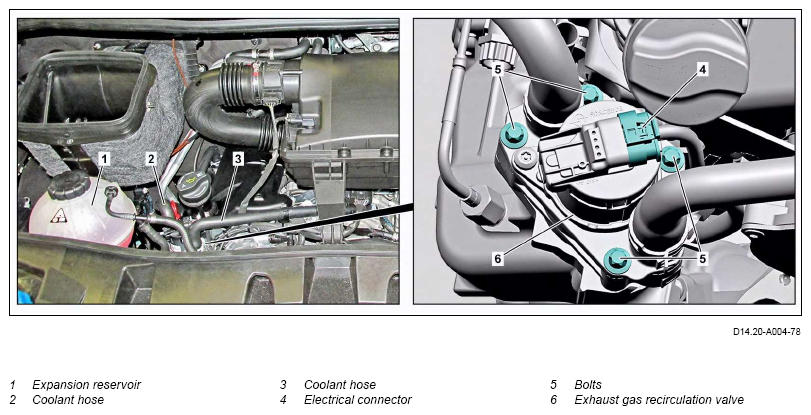

1	Remove the cap of the expansion reservoir	To do this, turn the cap of the expansion reservoir (1) counterclockwise by a half revolution, release overpressure and then unscrew the cap.
2	Disconnect coolant hoses (2, 3).	Clamp	Fig 2
3	Remove coolant hoses (2, 3) from exhaust gas recirculation valve (6).	Collect coolant which flows out. Commercially available devices/tools  Collecting pan Check clamps.
		Hose clamp pliers ↓ Depending on the findings, replace affected clamp.	Fig 1
4	Disconnect electrical connector (4).
5	Remove bolts (5).	Bolt, exhaust gas recirculation valve to housing	*BA14.20-N-1002-01TSV
		Set of flexible head wrenches	Fig 3
6	Remove exhaust gas recirculation valve (6).	Collect coolant which flows out. Commercially available devices/tools  Collecting pan Replace seal.
	Clean
7	Clean sealing surface on the housing of the exhaust gas recirculation valve (6).	Assembly cleaner	*BR00.45-Z-1028-04A
8	Clean sealing surface on the exhaust gas recirculation valve (6).	If the exhaust gas recirculation valve (6) is reused. Assembly cleaner	*BR00.45-Z-1028-04A
9	Install in the reverse order.
10	Read out the fault memory using the diagnostic unit.	If the exhaust gas recirculation valve (6) was replaced.
	Connect/disconnect diagnostic unit	Do not remove diagnostic device yet. If existing faults are shown: ↓ Erase the fault memory.	AD00.00-D-2000-06TS
11	Perform parameterization of exhaust gas recirculation valve (6) using diagnostic device in fuel injection system control unit.	If the exhaust gas recirculation valve (6) was replaced.
12	Disconnect diagnostic unit.	If the exhaust gas recirculation valve (6) was replaced.
	Connect/disconnect diagnostic unit		AD00.00-D-2000-06TS
	Check
13	Check coolant level.
	Engine cooling system - inspecting fluid level, adjusting to correct level	Depending on the findings, → Correct coolant level.	AP20.00-D-2011TS
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
14	Check for leaktightness when engine is running.	Visual inspection only.
15	Check engine cooling system for leak tightness.		AR20.00-D-1011TS

EXHAUST GAS RECIRCULATION

Number	Designation		Engine 642 in model 907
BA14.20-N-1002-01TSV	Bolt, exhaust gas recirculation valve to housing	Nm	8

Fig 1: Hose Clamp Pliers (454 589 00 37 00)

Fig 2: Clamp (000 589 54 37 00)

Fig 3: Set Of Flexible Head Wrenches (001 589 81 09 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
