Remove/Install Exhaust Gas RECIRCULATION Line Downstream Of Exhaust Gas RECIRCULATION Valve - Ar14.20-D-1063TSR
Engine 651 in model 907
Shown on engine 651 in model 907
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of burn injuries,
suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. |
Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. |
AS49.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1.1 | Remove the bracket for the vacuum reservior. | Engine 651 in model 907 | AR07.09-D-0002TSR |

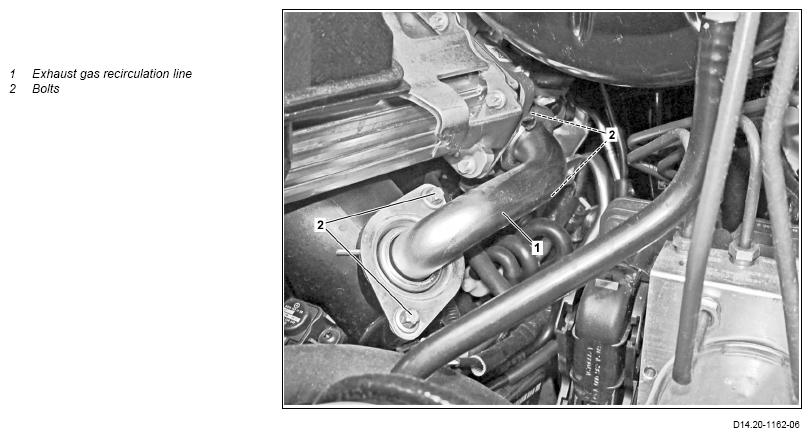

| 2 | Remove screw/bolts (2). | *BA14.20-N-1004-01TS | |
| *BA14.20-N-1003-01TS | |||
| 3 | Remove exhaust gas recirculation line (1). | ||
| 4 | Remove gaskets. | ||
| 5 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Check for leaktightness when engine is running. |
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BA14.20-N-1003-01TS | Bolt, exhaust gas recirculation line to exhaust gas recirculation valve to charge air line | Nm | 9 |
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BA14.20-N-1004-01TS | Bolt, exhaust gas recirculation line to exhaust gas recirculation valve to bypass flap | Nm | 10 |
