Remove/Install Charge Air Temperature Sensor Upstream Of Throttle Valve - Ar09.41-D-0006TSR
Engine 651 in model 907
MODIFICATION NOTES
| 03.07.2019 | Work procedure updated, information added | Operation steps 3, 4 |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 2 | Remove lower engine compartment paneling. | Model 907 with code XM1 (Noise abatement measures) |
AR61.20-D-1105TS |
| 3 | Disconnect electrical connection (2). | ||

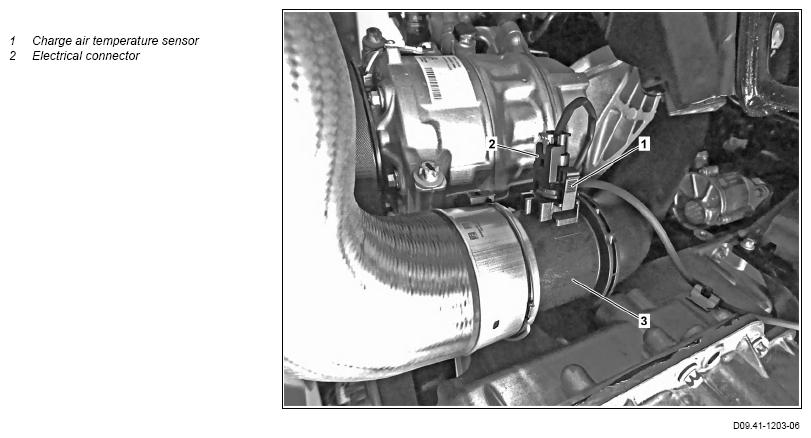

| 4 | Remove charge air temperature sensor (1). | Do not disengage or engage the charge air temperature sensor (1) with the electrical connector (2) connected. The snap-in bracket may be overstretched otherwise. Depending on the findings, ↓ Replace damaged sealing ring. If the snap-in brackets of the charge air temperature sensor (1) are damaged: ↓ Install new charge air temperature sensor (1). |
|
| 5 | Install in the reverse order. | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Check for leaktightness when engine is running. |
