Remove/Install Charge Air Hose Upstream Of Charge Air Cooler - Ar09.41-D-8621TSC
Engine 274 in model 907
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||

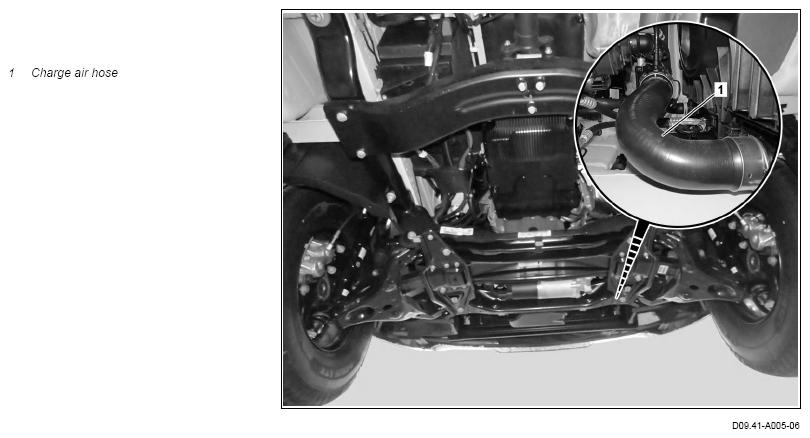

| 2 | Remove charge air hose (1) from charge air cooler and seal openings using suitable protective covers. | AR09.41-D-1311-01WE | |
| Fig 2 | |||
| 3 | Remove charge air hose (1) from engine charge air duct at exhaust gas turbocharger and seal openings using suitable protective covers. | AR09.41-D-1311-01WE | |
| Fig 2 | |||
| 4 | Remove charge air hose (1). | ||
| Check | |||
| 5 | Check sealing rings of charge air hose (1), replace if necessary. | AR09.41-D-1311-01WE | |
| Fig 1 | |||
| 6 | Install in the reverse order | ||
| Check | |||
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. |
