Install And Weld In Part Of Front Vehicle Floor In Cab - Ar61.10-D-5721-03TS

	000 588 01 84 00 Welder	WS60.00-P-0021K
	000 588 02 84 00 Welder	WS60.00-P-0022K

Model 907

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

The next steps are shown on the left side of the vehicle on model 907.733 and must be performed in a similar manner for vehicles with damage on the right side of the vehicle.

1. Install front vehicle floor (1), fit and fix in place.

   Commercially available devices/tools

   Clamping pliers (Standard)

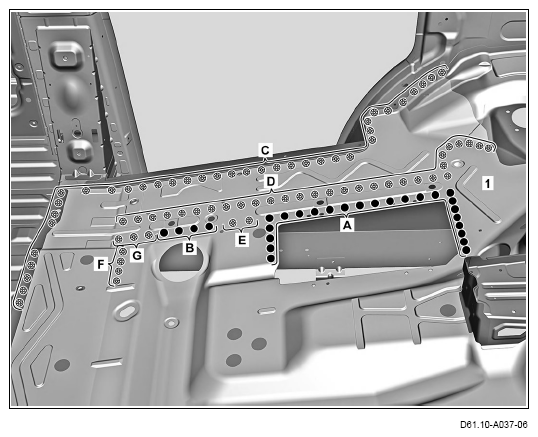

2. Front vehicle floor (1) (areas A and B).
3. Front vehicle floor (1) (areas C, D, E, F, and G).
4. Surface grind inert gas plug welds (areas C, D, E, F, and G).

   Commercially available devices/tools

   Angular grinder

5. Remove shavings.

   Commercially available devices/tools

   Wet and dry vacuum cleaner

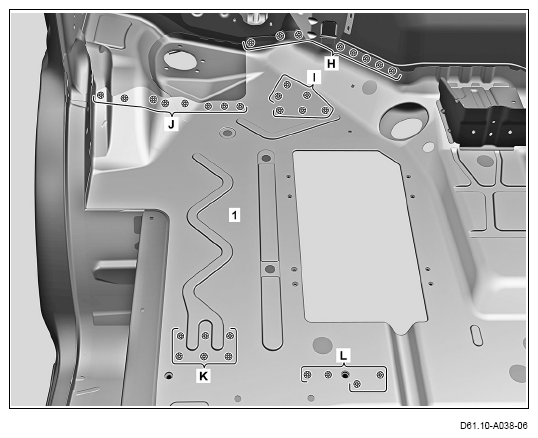

6. Front vehicle floor (1) (areas H, I, J, K, and L).
7. Surface grind inert gas plug welds (areas H, I, J, K, and L).

   Commercially available devices/tools

   Angular grinder

8. Remove shavings.

   Commercially available devices/tools

   Wet and dry vacuum cleaner

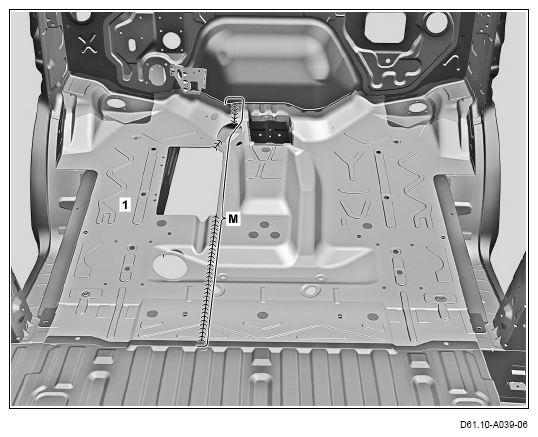

9. Front vehicle floor (1) (area M).

   Inert gas weld in intervals and allow to cool down in between.

   Heat distortion is reduced as a result.

10. Surface grind inert gas weld (area M).

    Commercially available devices/tools

    Angular grinder

11. Remove shavings.

Commercially available devices/tools

Wet and dry vacuum cleaner
