Install A-Pillar Inner Section - Ar63.20-D-1104-04TS

	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Measures for preventing damage to vehicles or components when performing electric welding work		AH00.00-N-0005-01A
	000 588 01 84 00 Welder		WS60.00-P-0021K
	000 588 02 84 00 Welder		WS60.00-P-0022K

Model 907

Fig 1: Welding Device (907 589 01 23 00)

The next steps are shown on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

1. Install, fit, and fix in place the center A-pillar inner section (1.2).

   Use welding fixture.

2. Model 907
   1. Model 907

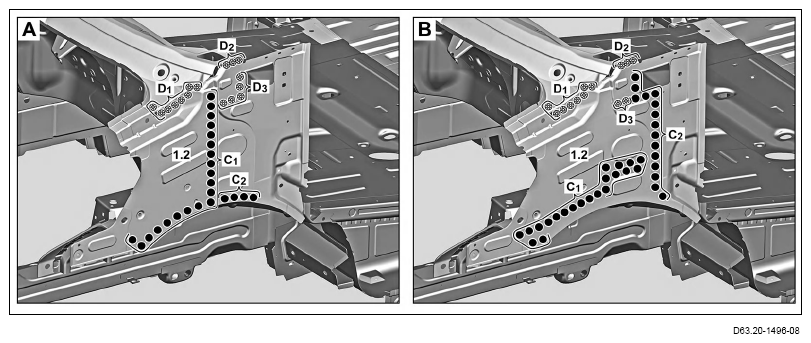

      Center A-pillar inner section (1.2) (areas C₁ and C₂ ) (picture A).

3. Model 907
   1. Model 907

      Center A-pillar inner section (1.2) (areas D₁ , D₂ and D₃ ) (picture A).

4. Grind inert gas plug welds down flat (area D1).
5. Remove shavings.

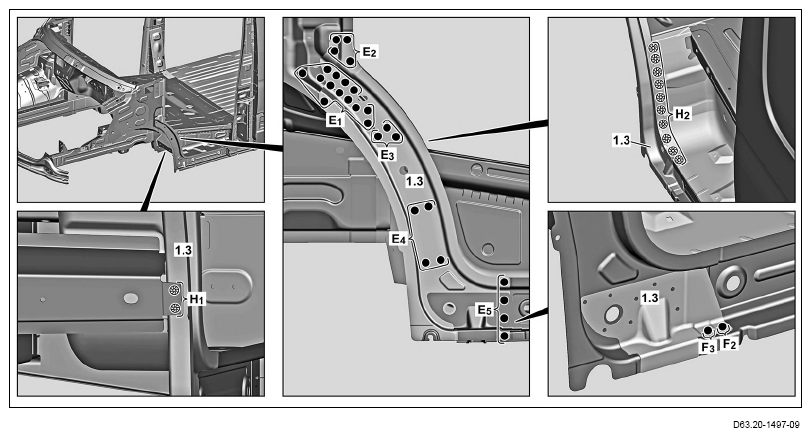

6. Install lower A-pillar inner section (1.3), fit, and fix in place.
7. Lower A-pillar inner section (1.3) (areas E₁ , E₂ , E₃ , E₄ , E₅ , F₂ , and F₃ ).
8. A-pillar lower inner section (1.3) (areas H₁ and H₂ ).
9. Sealant seal (area I).

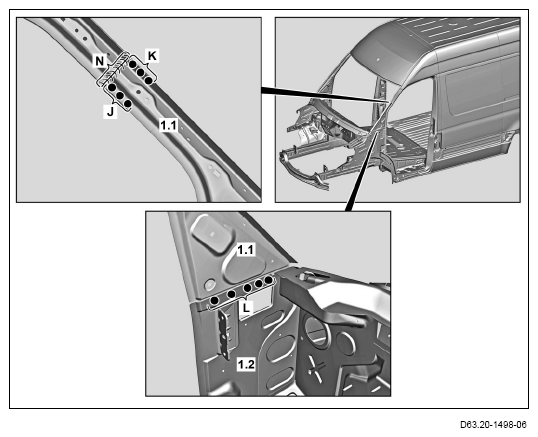

10. Install upper A-pillar inner section (1.1), fit, and fix in place.
11. Upper A-pillar inner section (1.1) (areas J, K, and L).
12. Upper A-pillar inner section (1.1) (area N).
